Dynamic Processing Settings v1

DPS V1 will be deprecated by Q1, 2027. Any IPF services that uses DPS will have started to use DPS V2 by this time. Client implementations that currently use DPS should migrate to DPS V2. Any new implementations that need DPS should be undertaken using DPS V2.

Background

Dynamic Processing Settings provides a platform to manage configurable settings and their lifecycle. This platform provides for defining, maintaining and exposing configurable settings that can be referenced from an external application such as IPF.

The initial use case which has been used to prove out the framework in the first instance is CSM Reachability.

High Level Project Structure

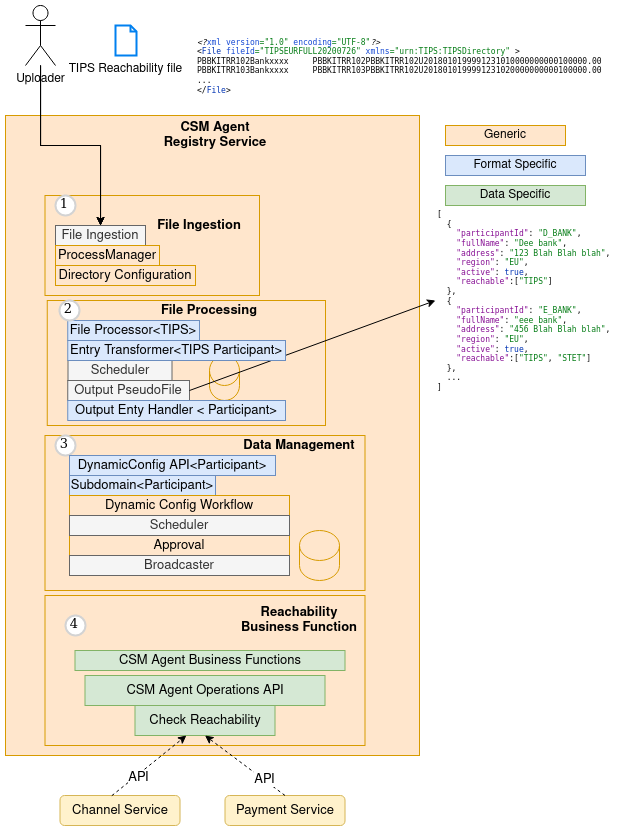

The following diagram shows an example of the high level structure of components involved in Dynamic Processing Settings.

structure

Platform Projects:

Project Description

file-ingestion-service

Contains the required infrastructure to consume settings from a source e.g. a file and propagate the consumed settings through to the setting management API via a Process Manager.

setting-domain

Contains generic setting domain and model objects e.g. CreateSetting, UpdateSetting, Setting

setting-management

Contains the API framework which is used to manage the settings (CRUD API)

setting-workflow

Contains the MPS generated artefacts to support lifecycle management via Event Sourced Behaviours

setting-catalogue

Specific settings which have been defined to be managed by the Dynamic Processing Settings framework. Contains supporting infrastructure such as read side models and settings definitions

CSM Reachability Solution Projects:

The CSM Reachability Solution leverages the Platform Projects and defines additional solution specific projects

Project Description

csm-reachability

Pulls in the relevant platform projects, and contains the validate csm reachability business service, which invokes the setting management APIs in order to determine CSM reachability given a specific input

csm-reachability-app

Wrapper project which pulls in all the relevant modules and runs as a single sprint boot application. It also builds a docker image of the same.

csm-reachability-service

Contains the orchestration service - csm-reachability-service

csm-reachability-setting-management

Leverages setting-management and specific setting definitions relevant to the CSM Reachability Solution

participant-file-handling

Leverages file-ingestion-service and specific setting definitions relevant to the CSM Reachability Solution

csm-reachability-e2e-test

Verifies the CSM Reachability App assembles and runs successfully as a docker image
