Getting Started

Overview

Depending on your message log configuration to use Kafka or Database, the deployment could be slightly different.

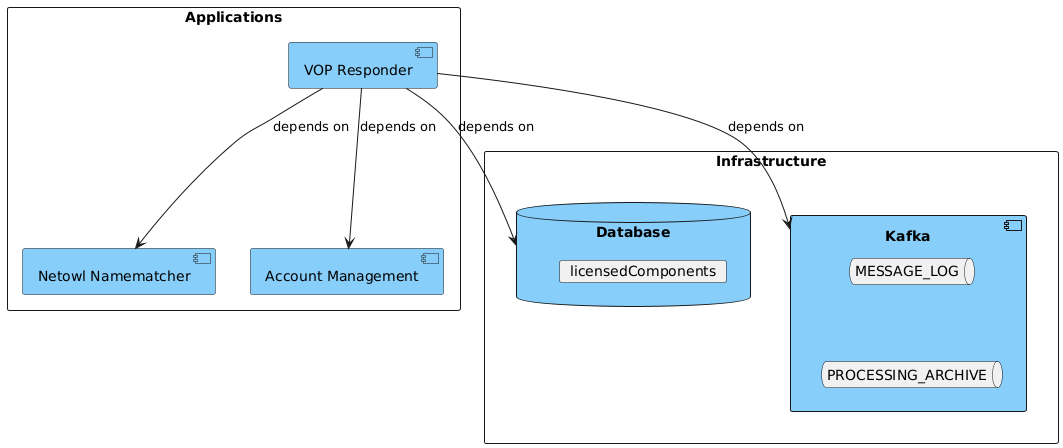

Kafka Message Logging

Netowl Namematcher - Used by VoP via Identity Resolution (embedded) as the third party provider for name matching.
Account Management - Used by VoP for looking up the account details used in matching
Database - Used for licensing
Kafka - Used by VoP for message logging and storing the processing archive

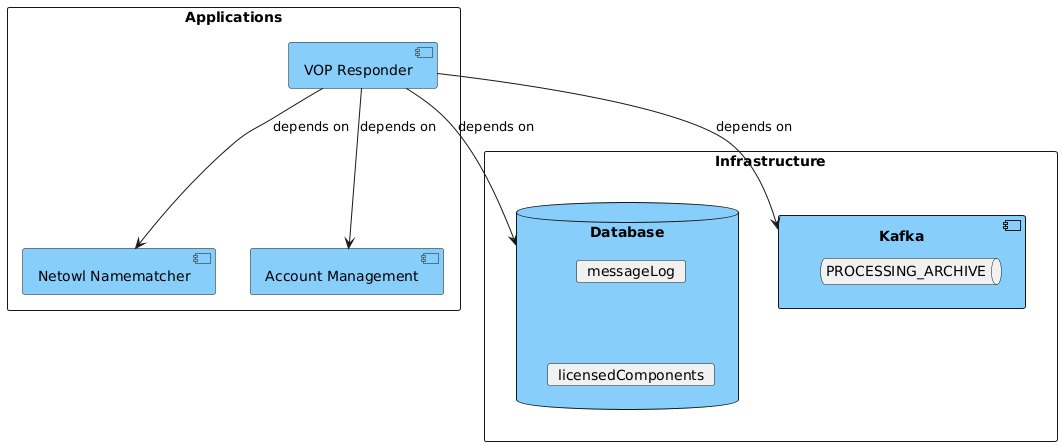

Database Message Logging

Netowl Namematcher - Used by VoP via Identity Resolution (embedded) as the third party provider for name matching.
Account Management - Used by VoP for looking up the account details used in matching
Database - Used for licensing and message logging
Kafka - Used by VoP for storing the processing archive

Configuration and Runtime

The Verification of Payee (VoP) is a stand-alone application that can be run as a service much like any other IPF application deployment. The VoP Responder service can be run as a single instance or multiple.

Configuration

The below docker compose configuration is the minimum required for the VoP Responder service to run using Kafka for message logging and MongoDB for licensing.

VoP Responder does not require an Akka Cluster to be configured.

ipf {
  mongodb.url = "mongodb://ipf-mongo:27017/vop"  (1)
}

common-kafka-client-settings {
  bootstrap.servers = "kafka:9092" (2)
}

akka {
  kafka {
    producer {
      kafka-clients = ${common-kafka-client-settings}
    }
    consumer {
      kafka-clients = ${common-kafka-client-settings}
      kafka-clients.group.id = vop-responder-consumer-group
    }
  }
}

ipf.verification-of-payee.responder {
  name-match { (3)
    thresholds = [
      {
        processing-entity = "default",
        scorings: [
          {type: "default", lowerbound = 0.80, upperbound = 0.90}
        ]
      }
    ]
  }
  account-management.http.client {
    host = account-management-sim (4)
    port = 8080
  }
}

identity-resolution.comparison.netowl {
  default {
    http.client {
      host = netowl-namematcher (5)
      port = 8080
    }
  }
  table {
    http.client {
      host = netowl-namematcher (5)
      port = 8080
    }
  }
}

Note the following key aspects:

1	Set the MongoDB URL as appropriate for your environment
2	Set the Kafka URL as appropriate for your environment
3	Set the Name Matching thresholds required for your implementation
4	Set the Account Management hostname and port as appropriate for your environment
5	Set the Identity Resolution Netowl hostname and port as appropriate for your environment

Running

Docker Compose

The following docker compose is a VoP Responder service deployment that contains all the required infrastructure/applications (Kafka, MongoDB, Netowl, Account Management) needed to run the VoP Responder application. This sample deployment is running with Kafka for message logging and MongoDB for licensing.

This represents a sample configuration and is not intended to represent performance or resiliency concerns which will be covered in another section in future releases.

Docker Compose

services:

  # Infrastructure
  ipf-mongo:
    image: ${docker.registry}/ipf-docker-mongodb:latest
    container_name: ipf-mongo
    ports:
      - "27018:27017"
    healthcheck:
      test: echo 'db.runCommand("ping").ok' | mongo localhost:27017/test --quiet

  kafka:
    image: apache/kafka-native:4.0.0
    container_name: kafka
    ports:
      - "9092:9092"
      - "9093:9093"
    environment:
      - KAFKA_NODE_ID=1
      - KAFKA_AUTO_CREATE_TOPICS_ENABLE=true
      - KAFKA_CONTROLLER_QUORUM_VOTERS=1@localhost:9094
      - KAFKA_CONTROLLER_LISTENER_NAMES=CONTROLLER
      - KAFKA_PROCESS_ROLES=broker,controller
      - KAFKA_LOG_RETENTION_MINUTES=10
      - KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR=1
      - KAFKA_OFFSETS_TOPIC_NUM_PARTITIONS=1
      - KAFKA_LISTENERS=PLAINTEXT://:9092,LOCAL://:9093,CONTROLLER://:9094
      - KAFKA_LISTENER_SECURITY_PROTOCOL_MAP=LOCAL:PLAINTEXT,PLAINTEXT:PLAINTEXT,CONTROLLER:PLAINTEXT
      - KAFKA_ADVERTISED_LISTENERS=PLAINTEXT://kafka:9092,LOCAL://localhost:9093
      - KAFKA_CREATE_TOPICS=MESSAGE_LOG:1:1,PROCESSING_ARCHIVE:1:1

  # Apps
  account-management-sim:
    image: ${docker.registry}/account-management-simulator:${project.version}
    container_name: account-management-sim
    ports:
      - "8082:8080"
      - "55555:55555"
      - "5006:5005"
    volumes:
      - ${docker-logs-directory}:/ipf/logs
      - ./config/account-management-sim:/account-management-simulator/conf
    user: "1000:1000"
    healthcheck:
      test: [ "CMD", "curl", "-f", "http://localhost:55555/statistics" ]
      interval: 1s
      timeout: 1s
      retries: 90

  netowl-namematcher:
    image: ${docker.registry}/netowl-namematcher:4.9.5.2
    container_name: netowl-namematcher
    ports:
      - "8081:8080"
    volumes:
      - ./config/netowl-namematcher:/var/local/netowl-data/
    healthcheck:
      test: [ "CMD", "curl", "-f", "http://localhost:8080/api/v2" ]
      interval: 1s
      timeout: 1s
      retries: 90

  vop-responder-app:
    image: ${docker.registry}/verification-of-payee-responder-application:${project.version}
    container_name: vop-responder-app
    ports:
      - "8080:8080"
      - "5005:5005"
    volumes:
      - ${docker-logs-directory}:/ipf/logs
      - ./config/vop-responder-app:/verification-of-payee-responder-application/conf
    user: "1000:1000"
    environment:
      - IPF_JAVA_ARGS=-Dma.glasnost.orika.writeClassFiles=false -Dma.glasnost.orika.writeSourceFiles=false -Dconfig.override_with_env_vars=true
    depends_on:
      - ipf-mongo
      - kafka
    healthcheck:
      test: [ "CMD", "curl", "http://localhost:8080/actuator/health" ]

Note the following key aspects:

MongoDB and Kafka containers are third party images and not supplied by Icon Solutions
Account Management Simulator is added for illustration purposes and is not supplied by Icon Solutions but should be a customer implementation conforming to the Account Management API
The Netowl image above is a third party container not supplied by Icon Solutions and is currently being used by Identity Resolution Service, which is running embedded in the VoP Responder app. For more details on this, please review the Identity Resolution documentation. If a separate instance already exists in the customer environment, any customisations should be re-applied here if using a new image.
The VoP Responder app is created by Icon Solutions and hosted in our ipf-releases repository in Nexus.

Kubernetes

The following Kubernetes configuration is a VoP Responder service deployment that contains the recommended settings for deploying a VoP Responder application. This sample deployment is running with Kafka for message logging.

This represents a sample configuration and is not intended to represent performance concerns which will be covered in another section in future releases.

Configmap

apiVersion: v1
kind: ConfigMap
metadata:
  name: responder-config
  labels:
    app: verification-of-payee-responder
    product: ipfv2
data:
  application.conf: |
    ipf.mongodb.url = "mongodb://mongo:27017/vop"
    server.port = 8081

    identity-resolution.comparison.netowl {
      default {
        http.client {
          host = localhost
          port = 8080
        }
      }
      table {
        http.client {
          host = localhost
          port = 8080
        }
      }
    }

    ipf.verification-of-payee.responder {
      name-match {
        thresholds = [
          {
            processing-entity = "default",
            scorings: [
              {type: "default", lowerbound = 0.80, upperbound = 0.90}
            ]
          }
        ]
      }
      account-management.http.client {
        host = account-management
        port = 8080
      }
    }

    common-kafka-client-settings {
      bootstrap.servers = "kafka:9092"
    }
    akka {
      kafka {
        producer {
          kafka-clients = ${common-kafka-client-settings}
        }
        consumer {
          kafka-clients = ${common-kafka-client-settings}
          kafka-clients.group.id = vop-responder-consumer-group
        }
      }
    }

  license.key: |-
    {
      "product":"NameMatcher",
      "type":"Development",
      "thread limit":1,
       "*":{
          "lifespan":[ "2022-01-01 00:00Z", "2026-01-01 00:00Z" ],
          "features":[ "Latin" ]
       },
      "verification":<hidden>
    }

Deployment

apiVersion: apps/v1
kind: Deployment
metadata:
  name: verification-of-payee-responder-application
  labels:
    app: verification-of-payee-responder-application
    product: ipfv2
spec:
  replicas: 3
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 0
      maxSurge: 1
  selector:
    matchLabels:
      app: verification-of-payee-responder-application
      product: ipfv2
  template:
    metadata:
      labels:
        app: verification-of-payee-responder-application
        product: ipfv2
    spec:
      imagePullSecrets:
        - name: registry-credentials
      terminationGracePeriodSeconds: 10
      affinity:
        podAntiAffinity:
          preferredDuringSchedulingIgnoredDuringExecution:
            - weight: 100
              podAffinityTerm:
                labelSelector:
                  matchExpressions:
                    - key: app
                      operator: In
                      values:
                        - verification-of-payee-responder-application
                topologyKey: "kubernetes.io/hostname"
      containers:
        - name: verification-of-payee-responder-application
          image: registry.ipf.iconsolutions.com/verification-of-payee-responder-application:latest
          ports:
            - containerPort: 8081
              name: server-port
            - containerPort: 5005
              name: debug-port

          env:
            - name: "IPF_JAVA_ARGS"
              value: "-Dma.glasnost.orika.writeClassFiles=false -Dma.glasnost.orika.writeSourceFiles=false"

          livenessProbe:
            httpGet:
              path: /actuator/health
              port: "server-port"
              scheme: HTTP
            initialDelaySeconds: 60
            periodSeconds: 5
            timeoutSeconds: 1
            failureThreshold: 3
            successThreshold: 1

          readinessProbe:
            httpGet:
              path: /actuator/health
              port: server-port
              scheme: HTTP
            initialDelaySeconds: 60
            periodSeconds: 5
            timeoutSeconds: 1
            failureThreshold: 3
            successThreshold: 1

          startupProbe:
            httpGet:
              path: /actuator/health
              port: server-port
              scheme: HTTP
            failureThreshold: 30
            periodSeconds: 10

          volumeMounts:
            - name: application-config
              mountPath: /verification-of-payee-responder-application/conf/application.conf
              subPath: application.conf

        - name: netowl-namematcher
          image: registry.ipf.iconsolutions.com/netowl-namematcher:latest
          imagePullPolicy: IfNotPresent

          ports:
            - containerPort: 8080
              name: netowl-port

          livenessProbe:
            httpGet:
              path: /api/v2/healthy
              port: 8080
            initialDelaySeconds: 15
            timeoutSeconds: 2
            periodSeconds: 5

          volumeMounts:
            - name: netowl-data
              mountPath: /var/local/netowl-data
            - name: application-config
              mountPath: /var/local/netowl-data/license.key
              subPath: license.key


      volumes:
        - name: application-config
          configMap:
            name: responder-config
        - name: netowl-data
          emptyDir: {}

Service

apiVersion: v1
kind: Service
metadata:
  name: verification-of-payee-responder-application
spec:
  selector:
    app: verification-of-payee-responder-application
  ports:
    - protocol: TCP
      port: 8081
      targetPort: 8081
      name: server-port

Note the following key aspects:

Infrastructure services like Kafka and MongoDB have not been provided in the above configuration and not supplied by Icon Solutions.
The Netowl image above is a third party container not supplied by Icon Solutions and is currently being used by Identity Resolution Service, which is running embedded in the VoP Responder app. For more details on this, please review the Identity Resolution documentation. If a separate instance already exists in the customer environment, any customisations should be re-applied here if using a new image.
The VoP Responder app is created by Icon Solutions and hosted in our ipf-releases repository in Nexus.
The number of replicas has been set to 3 for load balancing concerns
Liveness, Readiness and Startup probes have been configured to support node and pod stability, but these can be modified if required.
Pod Anti-Affinity has been configured to spread pods across multiple nodes to prevent a single point of failure.

Startup Errors

VoP Responder requires a database connection during application startup, regardless of the configured message logging type, due to IPF Licensing. If the application cannot connect to the database during startup, it will be marked as unhealthy. It will keep attempting to reconnect, and once a connection is successfully established, the application will transition to a healthy state. All connection failures and retry attempts will be logged to the application log at the WARN level.

When kafka is selected as the message logging type, the application will also attempt to connect to Kafka at startup. However, failure to connect to Kafka will be logged but will not affect the application’s health status by default. This is to prevent message logging from stopping VoP requests being processed.

If message logging is considered critical and Kafka connectivity issues should impact the application’s health and core functionality, you can enable this behavior by setting:

message.logger.send-connector.resiliency-settings.enabled = true

If the database becomes unavailable after the VoP Responder has started, then the VoP Responder service will become unavailable.
