Getting Started
Overview

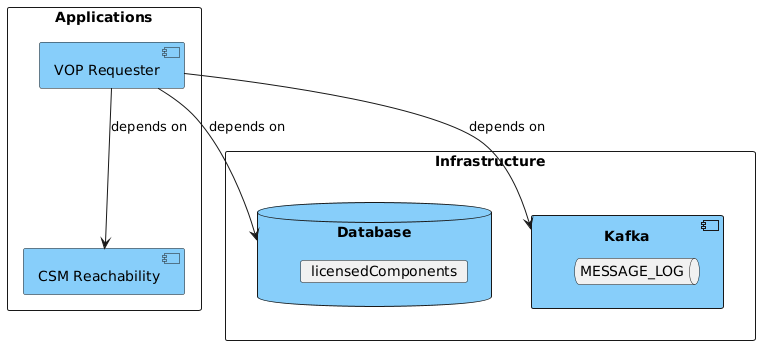

Depending on your message log configuration to use Kafka or Database, the deployment could be slightly different.
Configuration and Runtime
The Verification of Payee (VoP) Requester is a stand-alone application that can be run as a service much like any other IPF application deployment. The VoP Requester service can be run as a single instance or multiple.
Configuration
The below configuration is the minimum required for the VoP Requester service to run using FPAD as the selected RVM, Kafka for message logging and MongoDB for licensing.
| VoP Requester does not require an Akka Cluster to be configured. |
ipf {
mongodb.url = "mongodb://ipf-mongo:27017/vop" (1)
}
ipf.csm-reachability-api.http.client {
host = "http://reachability-app" (2)
port = 8080
}
ipf.verification-of-payee.requester {
responder.fpad.http.client {
host = "http://fpad-app" (3)
port = 8080
}
schemes = [ (4)
{
name: EPC
rvm: FPAD
processing-entities = [
{processing-entity-code: "default", scheme-membership-id: "ICONUK02XXX"}
]
}
]
}
common-kafka-client-settings {
bootstrap.servers = "kafka:9092" (5)
}
akka {
kafka {
producer {
kafka-clients = ${common-kafka-client-settings}
}
consumer {
kafka-clients = ${common-kafka-client-settings}
kafka-clients.group.id = vop-requester-consumer-group
}
}
}Note the following key aspects:
| 1 | Set the MongoDB URL as appropriate for your environment |
| 2 | Set the CSM Reachability hostname and port as appropriate for your environment |
| 3 | Set the FPAD hostname and port as appropriate for your environment |
| 4 | Set the scheme membership ids applicable for the selected scheme/rvm, see Scheme Membership |
| 5 | Set the Kafka URL as appropriate for your environment |
Running
Docker Compose
The following docker compose is a VoP Requester service deployment that contains all the required infrastructure/applications (Kafka, MongoDB, Reachability) needed to run the VoP Requester application. This sample deployment is running with Kafka for message logging and MongoDB for licensing.
| This represents a sample configuration and is not intended to represent performance or resiliency concerns which will be covered in another section in future releases. |
Docker Compose
services:
# Infrastructure
ipf-mongo:
image: ${docker.registry}/ipf-docker-mongodb:latest
container_name: ipf-mongo
ports:
- "27018:27017"
healthcheck:
test: echo 'db.runCommand("ping").ok' | mongo localhost:27017/test --quiet
kafka:
image: apache/kafka-native:4.0.0
container_name: kafka
ports:
- "9092:9092"
- "9093:9093"
environment:
- KAFKA_NODE_ID=1
- KAFKA_AUTO_CREATE_TOPICS_ENABLE=true
- KAFKA_CONTROLLER_QUORUM_VOTERS=1@localhost:9094
- KAFKA_CONTROLLER_LISTENER_NAMES=CONTROLLER
- KAFKA_PROCESS_ROLES=broker,controller
- KAFKA_LOG_RETENTION_MINUTES=10
- KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR=1
- KAFKA_OFFSETS_TOPIC_NUM_PARTITIONS=1
- KAFKA_LISTENERS=PLAINTEXT://:9092,LOCAL://:9093,CONTROLLER://:9094
- KAFKA_LISTENER_SECURITY_PROTOCOL_MAP=LOCAL:PLAINTEXT,PLAINTEXT:PLAINTEXT,CONTROLLER:PLAINTEXT
- KAFKA_ADVERTISED_LISTENERS=PLAINTEXT://kafka:9092,LOCAL://localhost:9093
- KAFKA_CREATE_TOPICS=MESSAGE_LOG:1:1
# Apps
reachability-app:
image: registry.ipf.iconsolutions.com/csm-reachability-application:${icon-csm-reachability-app.version}
container_name: reachability-app
ports:
- "8083:8080"
- "5003:5005"
user: "1000:1000"
environment:
- IPF_JAVA_ARGS=-Dma.glasnost.orika.writeClassFiles=false -Dma.glasnost.orika.writeSourceFiles=false
volumes:
- ${docker-logs-directory}:/ipf/logs
- ./config/reachability-app:/csm-reachability-application/conf
- ./import:/csm-reachability-application/import
healthcheck:
test: [ "CMD", "curl", "-f", "http://localhost:8080/actuator/health" ]
depends_on:
- ipf-mongo
vop-requester-app:
image: ${docker.registry}/verification-of-payee-requester-application:${project.version}
container_name: vop-requester-app
ports:
- "8080:8080"
- "5005:5005"
volumes:
- ${docker-logs-directory}:/ipf/logs
- ./config/vop-requester-app:/verification-of-payee-requester-application/conf
user: "1000:1000"
environment:
- IPF_JAVA_ARGS=-Dma.glasnost.orika.writeClassFiles=false -Dma.glasnost.orika.writeSourceFiles=false -Dconfig.override_with_env_vars=true
depends_on:
- ipf-mongo
healthcheck:
test: [ "CMD", "curl", "http://localhost:8080/actuator/health" ]Note the following key aspects:
-
MongoDB and Kafka containers are third party images and not supplied by Icon Solutions
-
The CSM Reachability image is created by Icon Solutions and hosted in our ipf-releases repository in Nexus.
-
The VoP Requester app is created by Icon Solutions and hosted in our ipf-releases repository in Nexus.
Kubernetes
The following Kubernetes configuration is a VoP Requester service deployment that contains the recommended settings for deploying a VoP Requester application. This sample deployment is running with Kafka for message logging.
| This represents a sample configuration and is not intended to represent performance concerns which will be covered in another section in future releases. |
Configmap
apiVersion: v1
kind: ConfigMap
metadata:
name: requester-config
labels:
app: verification-of-payee-requester
product: ipfv2
data:
application.conf: |
ipf.mongodb.url = "mongodb://mongo:27017/vop"
ipf.verification-of-payee.requester.scheme-membership-ids {
schemes = [
{
name: EPC
rvm: FPAD
processing-entities = [
{processing-entity-code: "default", scheme-membership-id: "ICONGB01"}
]
}
]
}
ipf.csm-reachability-api.http.client {
host = reachability-app
port = 8080
}
common-kafka-client-settings {
bootstrap.servers = "kafka:9092"
}
akka {
kafka {
producer {
kafka-clients = ${common-kafka-client-settings}
}
consumer {
kafka-clients = ${common-kafka-client-settings}
kafka-clients.group.id = vop-responder-consumer-group
}
}
}Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
name: verification-of-payee-requester
labels:
app: verification-of-payee-requester
product: ipfv2
spec:
replicas: 3
strategy:
type: RollingUpdate
rollingUpdate:
maxUnavailable: 0
maxSurge: 1
selector:
matchLabels:
app: verification-of-payee-requester
product: ipfv2
template:
metadata:
labels:
app: verification-of-payee-requester
product: ipfv2
spec:
terminationGracePeriodSeconds: 10
affinity:
podAntiAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
- weight: 100
podAffinityTerm:
labelSelector:
matchExpressions:
- key: app
operator: In
values:
- verification-of-payee-requester
topologyKey: "kubernetes.io/hostname"
containers:
- name: verification-of-payee-requester-application
image: registry.ipf.iconsolutions.com/verification-of-payee-requester-application:latest
volumeMounts:
- name: application-config
mountPath: /verification-of-payee-requester-application/conf/application.conf
subPath: application.conf
env:
- name: "IPF_JAVA_ARGS"
value: "-Dma.glasnost.orika.writeClassFiles=false -Dma.glasnost.orika.writeSourceFiles=false"
ports:
- containerPort: 8080
name: actuator
readinessProbe:
httpGet:
path: /actuator/health
port: actuator
scheme: HTTP
initialDelaySeconds: 60
periodSeconds: 5
timeoutSeconds: 1
failureThreshold: 3
successThreshold: 1
livenessProbe:
httpGet:
path: /actuator/health
port: actuator
scheme: HTTP
initialDelaySeconds: 60
periodSeconds: 5
timeoutSeconds: 1
failureThreshold: 3
successThreshold: 1
startupProbe:
httpGet:
path: /actuator/health
port: actuator
scheme: HTTP
failureThreshold: 30
periodSeconds: 10
imagePullSecrets:
- name: registry-credentials
volumes:
- name: application-config
configMap:
name: requester-configService
apiVersion: v1
kind: Service
metadata:
name: verification-of-payee-requester-application
spec:
selector:
app: verification-of-payee-requester-application
ports:
- protocol: TCP
port: 8080
targetPort: 8080
name: actuatorNote the following key aspects:
-
Infrastructure services like Kafka have not been provided in the above configuration and are not supplied by Icon Solutions.
-
The CSM Reachability image is created by Icon Solutions and hosted in our ipf-releases repository in Nexus.
-
The VoP Requester app is created by Icon Solutions and hosted in our ipf-releases repository in Nexus.
-
The number of replicas has been set to 3 for load balancing concerns
-
Liveness, Readiness and Startup probes have been configured to support node and pod stability, but these can be modified if required.
-
Pod Anti-Affinity has been configured to spread pods across multiple nodes to prevent a single point of failure.
Startup Errors
VoP Requester requires a database connection during application startup, regardless of the configured message logging type, due to IPF Licensing. If the application cannot connect to the database during startup, it will be marked as unhealthy. It will keep attempting to reconnect, and once a connection is successfully established, the application will transition to a healthy state. All connection failures and retry attempts will be logged to the application log at the WARN level.
When kafka is selected as the message logging type, the application will also attempt to connect to Kafka at startup. However, failure to connect to Kafka will be logged but will not affect the application’s health status by default. This is to prevent message logging from stopping VoP requests being processed.
If message logging is considered critical and Kafka connectivity issues should impact the application’s health and core functionality, you can enable this behavior by setting:
message.logger.send-connector.resiliency-settings.enabled = true
| If the database becomes unavailable after the VoP Requester has started, then the VoP Requester service will become unavailable. |
