Supported Flows

This section outlines the flows currently supported by the CSM service. The sequence diagrams below illustrates where the CSM service fits into the broader context of mediating between flows and CSMs.

*aCSM - specific instance of a CSM which a particular csm-service is integrating to e.g. RT1/TIPS/SIC

NOTE: Interactions with the CSM are indicated with a dotted line, as they are subject to change depending on the scheme that is being integrated to - the details of which are specified in the scheme specific CSM service documentation.

Credit Transfer Flows

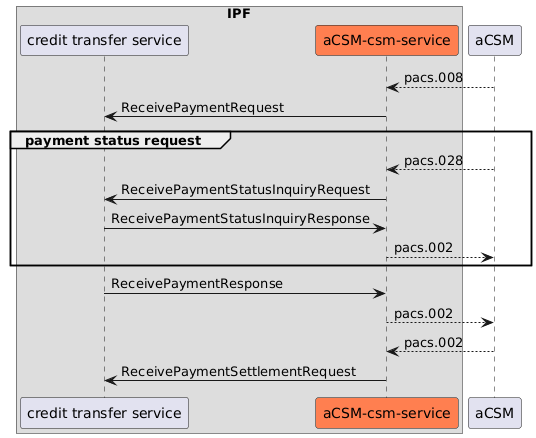

Creditor CT Flow

creditor-payment-flow

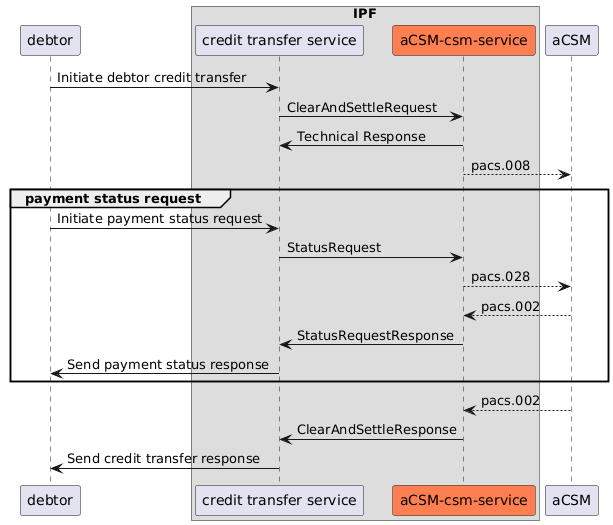

Debtor CT Flow

debtor-payment-flow

Recall, Return, ROI Flows

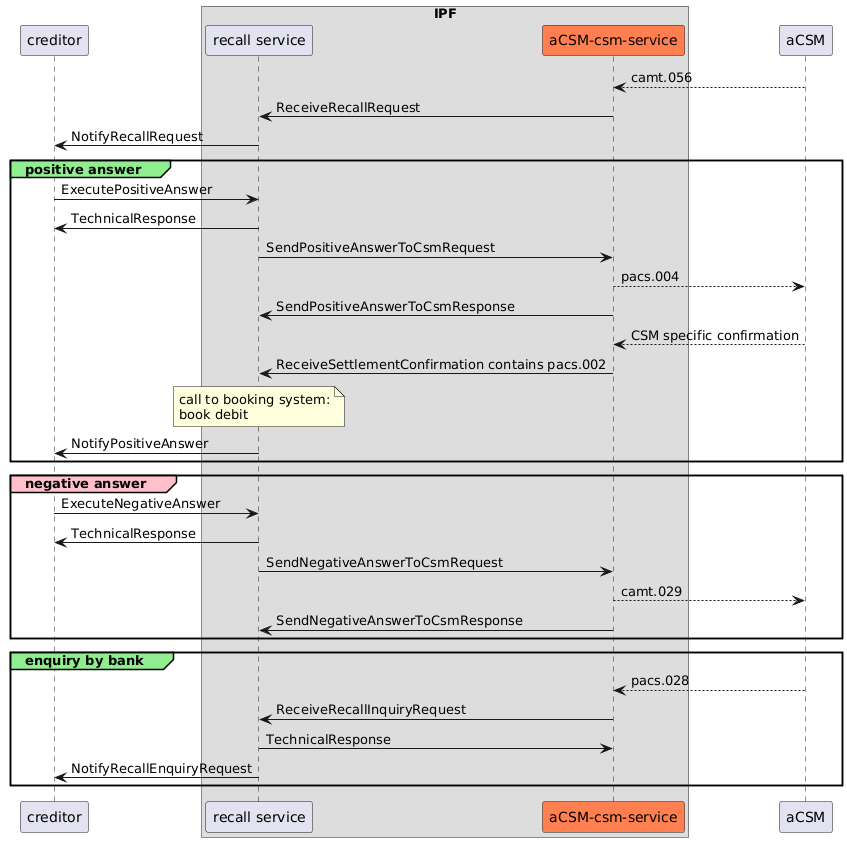

Creditor RRR Flows

rrr-creditor-flow

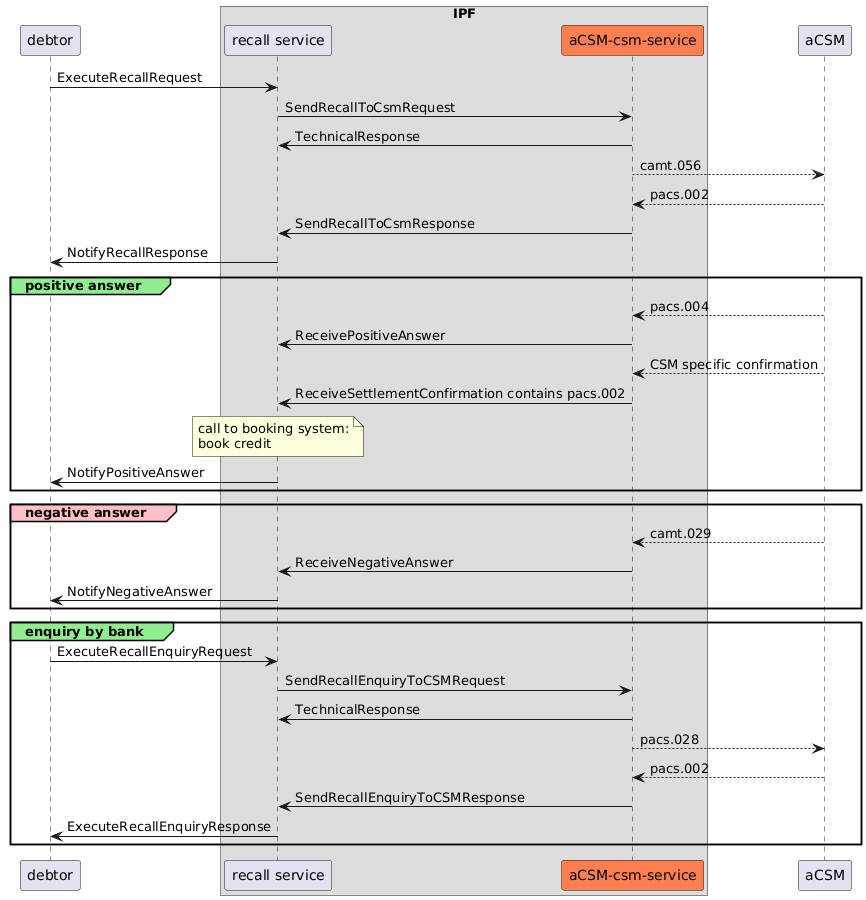

Debtor RRR Flows

rrr-debtor-flow
