Deployment

CSM Reachability with DPS (Dynamic Processing Settings) Setting Management can be integrated to a Payment flow (client application) using standalone deployment:

Standalone Deployment

This option provides each IPF flow the ability to invoke external CSM Reachability standalone application. In this case CSM Reachability service is deployed as standalone application. The flow can invoke csm reachability via provided connector.

DPS Setting Management Embedded

This option integrates DPS Setting Management into a CSM Reachability standalone application.

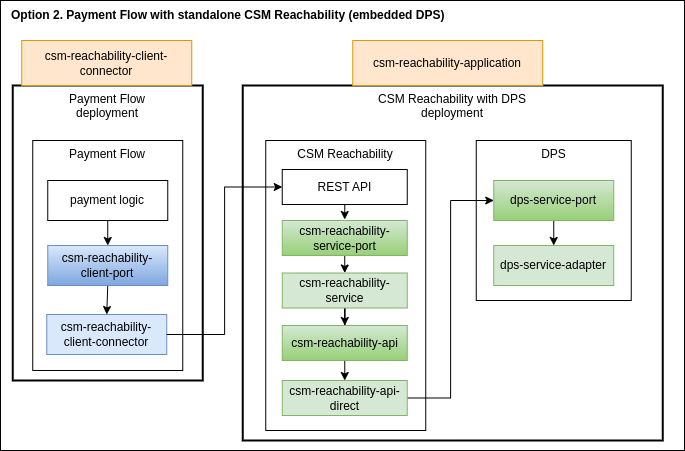

csm reachability dps deployments dps embedded.drawio

Dependencies needed on client side is:

<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>csm-reachability-client-connector</artifactId>
    <version>${csm-reachability-api.version}</version>
</dependency>

Dependencies needed on CSM Reachability service side is:

<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>csm-reachability-setting-management-application</artifactId>
    <version>${csm-reachability-app.version}</version>
</dependency>
<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>participant-file-handling</artifactId>
    <version>${csm-reachability-app.version}</version>
</dependency>
<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>csm-reachability-service</artifactId>
    <version>${csm-reachability-app.version}</version>
</dependency>
<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>bic-validation</artifactId>
    <version>${csm-reachability-app.version}</version>
</dependency>
<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>swift-ref-file-handling</artifactId>
    <version>${csm-reachability-app.version}</version>
</dependency>

In order this to work we need to specify the configuration:

ipf.csm-reacahbility.settings-api.connection = direct
ipf.csm-reacahbility.settings-api.file-handling.connection = direct

DPS Setting Management Standalone

This option offers all applications to be deployed independently. DPS Setting Management is deployed as standalone application too. csm-reachability reads settings from DPS via connector.

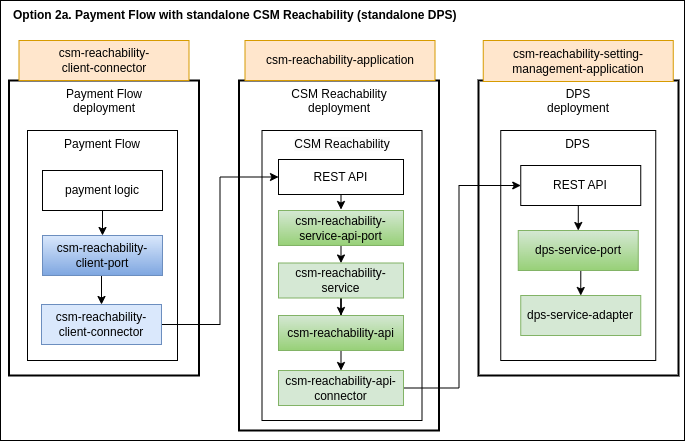

csm reachability dps deployments dps standalone.drawio

Dependencies needed on client side is:

<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>csm-reachability-client-connector</artifactId>
    <version>${csm-reachability-api.version}</version>
</dependency>

Dependencies needed on CSM Reachability service side is:

<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>csm-reachability-setting-management-application</artifactId>
    <version>${csm-reachability-app.version}</version>
</dependency>
<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>participant-file-handling</artifactId>
    <version>${csm-reachability-app.version}</version>
</dependency>
<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>csm-reachability-service</artifactId>
    <version>${csm-reachability-app.version}</version>
</dependency>
<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>bic-validation</artifactId>
    <version>${csm-reachability-app.version}</version>
</dependency>
<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>swift-ref-file-handling</artifactId>
    <version>${csm-reachability-app.version}</version>
</dependency>

In order this to work we need to specify the configuration:

ipf.csm-reacahbility.settings-api.http.client.host = setting-management-service
ipf.csm-reachability.settings-api.connection = http
ipf.csm-reachability.settings-api.file-handling.connection = http

Dependencies needed on CSM Reachability DPS Setting Management side is:

<dependency>
    <groupId>com.iconsolutions.ipf.payments.csm.reachability</groupId>
    <artifactId>csm-reachability-setting-management-application</artifactId>
    <version>${csm-reachability-app.version}</version>
</dependency>

We recommend taking the approach with CSM application stand alone and DPS embedded with CSM. This means you will have to deploy a springboot application (which you have to define and create), which uses the modules listed.
