Context-Based Flow Version Selection for Canary Testing

This guide explains how to leverage Context-Based Flow Version Selection to implement canary testing of new flow versions in your services. We’ll cover the fundamental concepts, prerequisites, and a detailed implementation procedure.

Introduction to Version Selection

Version selection enables configuration-driven routing based on message headers. If your services already use Context-Based Flow Version Selection, you can extend this functionality to support canary testing of new flows. The service instances utilize the ipf_version_selection header along with customizable routing rules to facilitate controlled testing of new flow versions.

How Version Selection Works

Version selection operates through a three-step process:

  1. The system detects message headers at flow initiation entry points (usually receive connectors or Spring controllers)

  2. Selected headers are added to the context (primarily ipf_version_selection, though custom headers are supported)

  3. Version selection rules evaluate the context to determine the appropriate flow version for message routing

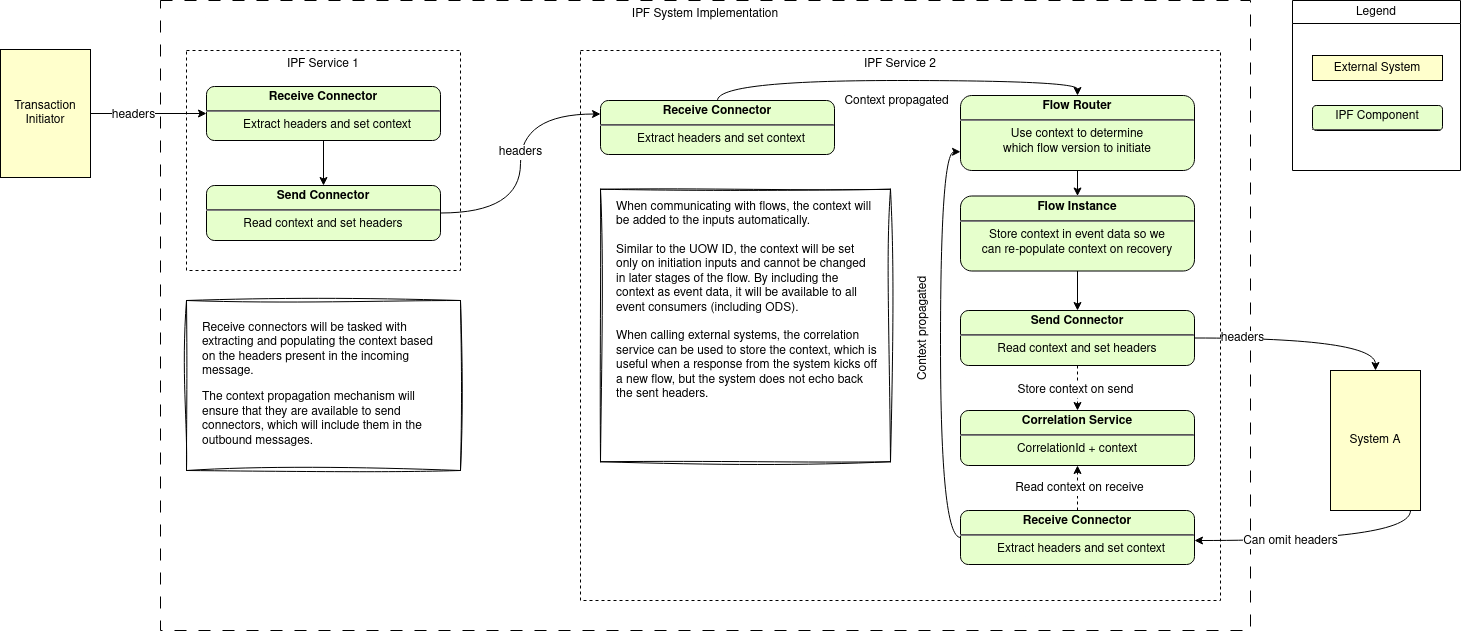

Version Selection Overview

Prerequisites for Implementing Canary Testing

The following requirements must be addressed before canary testing with version selection can be implemented.

  1. Transaction Initiator Modifications

    • To be performed on components that send initiation messages to your orchestration services (channels, clearing system gateways, etc)

    • Add logic to include the ipf_version_selection header (or a custom header) in initiation messages

    • Implement configurable header inclusion based on your canary testing criteria:

      • User subset targeting (based on roles, feature flags, group membership etc)

      • Percentage-based distribution (e.g., 90% STABLE, 10% CANARY)

    • Enable rapid reconfiguration capabilities through:

      • Deployment configuration changes

      • API calls for immediate adjustments

  2. Version Selection Rules

    • To be performed for each of your orchestration services

    • Define rules for mapping header values to specific flow versions

    • Choose a rule deployment strategy:

      • Package rules within application JARs

      • Provide rules solely via deployment configuration management (e.g. Kubernetes ConfigMaps)

      • Refer to the technical documentation for detailed rule specifications

Step-by-Step Canary Testing Procedure

This section outlines the recommended procedure for implementing canary testing using the ipf_version_selection header with STABLE and CANARY as possible header values.

Phase 1: Initial Setup

  1. Synchronize Flow Versions

    • Ensure all service instances use identical versions for both STABLE and CANARY values

    • Update version selection rules through:

    • Initially configure both values to route to the current stable version. Routing to stable versions ensures no transactions are routed to new flow versions before you’re ready to start your tests.

  2. Configure Message Generation

    • Set all initiation message generators to use the STABLE header value

      • This step maintains clean metrics (ipf_version_selection appears as a tag)

Phase 2: Deployment and Testing

  1. Service Deployment

    • Perform a rolling upgrade deployment (e.g. using Kubernetes)

    • Monitor metrics to verify stable flows are still functioning correctly

  2. Canary Configuration

    • Update version selection rules to map CANARY header to new flow versions

    • Modify flow initiation generators to include CANARY headers for the grouping or stratification relevant for your application. For example:

      • Specific user groups and/or

      • Defined percentage of traffic

  3. Monitoring and Validation

    • Create or update your dashboards to be capable of filtering on ipf_version_selection = CANARY tags

    • Monitor metrics to validate the performance of new flow versions

    • If errors occur:

Phase 3: Progressive Rollout to New Flows

  1. Gradual Expansion

    • Incrementally increase the CANARY message percentage

    • Monitor system behaviour at each increment

    • Maintain detailed metrics throughout the process

  2. Completion

    • Continue until reaching 100% CANARY messages

    • Maintain initiation at 100% CANARY for a predetermined observation period

    • After the observation period elapses, update both STABLE and CANARY configurations to use the new flow versions
