IPF Simulators

The IPF platform stands in between bank systems and CSMs to provide instant payment services.

As an aid to manual and exploratory testing, as well as for learning and demonstration purposes, simulators for both bank systems and CSMs are available.

Overview

birds eye view

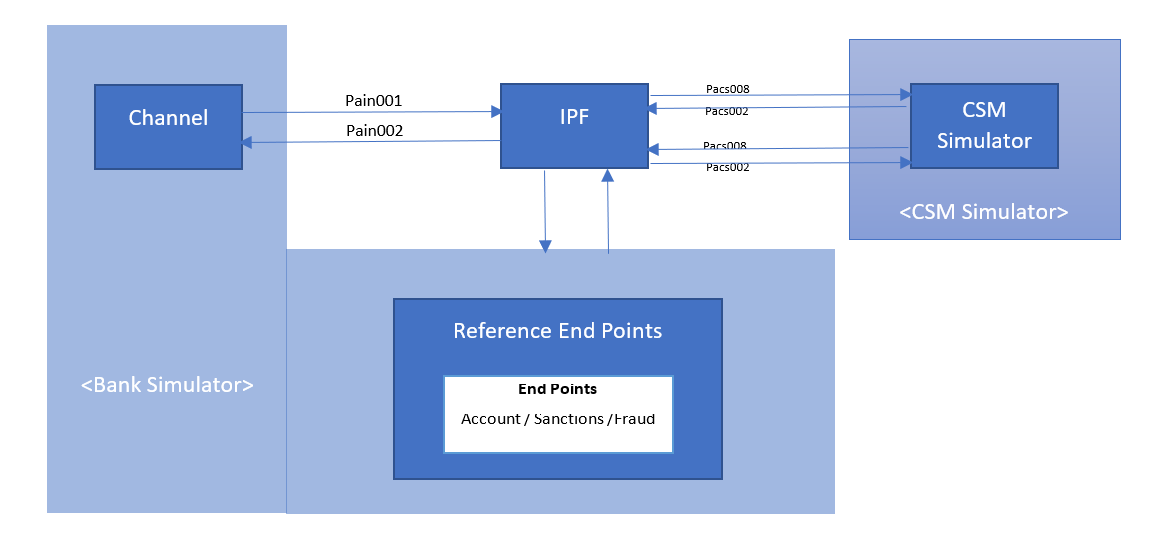

Figura 1. an IPF implementation interacts with bank and CSM simulators

Bank and CSM simulators supply replacement endpoints for those systems. In the figure above, we can see how a bank simulator provides both initiators and responders.

Typical initiators may include the following endpoints:

  • payment initiation (the Channel)

  • payment cancellation, payment return, resolution of investigation

Payment initiators also offer basic real-time request counters, and support additional implementation-specific status counters.

Additionally, the simulator offers automatic request load generation. This can be produced continuously or it can be limited in time and/or total amount of requests.

Responders will mimic the expected behaviour of the bank systems and depend strictly on the bank implementation.

CSM simulators also provide initiators for inbound payments, as well as responders for outbound payments and other messages: cancellations, returns, investigations, etc.

Responders are also known as request handlers and their response latency can be configured. Each responder is identified by a unique handlerId for this purpose, and the list of available responders can also be obtained.

IPF Generic Simulator NG API

Overview

All IPF simulators implement the IPF Generic Simulator API to support a common set of functionalities. This document defines the common elements of the simulation API. Further separate specialised APIs will be defined for specific use cases.

Version information

Version : 1.0.0

Tags

  • Request : Generate and send single/load requests

  • Configuration : Configure the simulator

  • Statistics : Query the status of the simulator

  • SentTransactionSummary : Query the transactions for the simulator

Resources

Request

Generate and send single/load requests

Sends a raw message that simply needs to be forwarded
PUT /sendRawRequest
Description

Usually this represents XML message that we want to pass through. In this case IPF Simulator doesn’t generate nor enrich the request because the request itself is fully contained message.

Parameters
Type Name Description Schema

Body

fullRequest
required

Describes the request to be sent to the system under test.

string

Header

Metadata
optional

Additional metadata that could be used to give more details about the request

string

Responses
HTTP Code Description Schema

200

Succesfully sent a single request to the system under test.

400

Usually the result of a malformed request.

No Content

Consumes
  • text/plain

Produces
  • application/json

Example HTTP request
Request path
/sendRawRequest
Request body
"<Document></Document>"
Request header
"string"
Example HTTP response
Response 200
{
  "outcome" : "ACSP",
  "additionalInfo" : { }
}
Sends a single request message to the system under test
PUT /sendRequest
Description

Sends a single request message payload to the system under test, as described by the RequestDetails.

Parameters
Type Name Description Schema

Body

requestDetails
required

Describes the request to be sent to the system under test. This is converted into a specialised format.

Responses
HTTP Code Description Schema

200

Succesfully sent a single request to the system under test.

400

Usually the result of a malformed RequestDetails json payload.

No Content

Consumes
  • application/json

Example HTTP request
Request path
/sendRequest
Request body
{
  "transactionId" : "fb495cf0d88a11ea87d00242ac130003",
  "amount" : {
    "amount" : 100,
    "currency" : "EUR"
  },
  "originatorName" : "John Maynard Keynes",
  "originatorAccount" : {
    "iban" : "GB29NWBK60161331926819",
    "bic" : "DEUTDEFF",
    "accountId" : "7928629",
    "ukBankAccount" : "object",
    "proxy" : "object"
  },
  "beneficiaryName" : "Benedetto Cotrugli",
  "beneficiaryAccount" : {
    "iban" : "GB29NWBK60161331926819",
    "bic" : "DEUTDEFF",
    "accountId" : "7928629",
    "ukBankAccount" : "object",
    "proxy" : "object"
  },
  "remittanceInfo" : "Remittance information",
  "additionalInfo" : { }
}
Example HTTP response
Response 200
{
  "outcome" : "ACSP",
  "additionalInfo" : { }
}
Sends one Recall Request message
PUT /bankRecall
Description

Allows a single recall request message payload to be sent into the system.

Parameters
Type Name Description Schema

Body

recallRequest
required

Recall Request details

Responses
HTTP Code Description Schema

200

Succesfully processed.

400

General Error.

No Content

Consumes
  • application/json

Example HTTP request
Request path
/bankRecall
Request body
{
  "transactionId" : "81cbf33cd88b11ea87d00242ac130003",
  "cancellationId" : "string",
  "cdtrNm" : "string"
}
Example HTTP response
Response 200
{
  "outcome" : "ACSP",
  "additionalInfo" : { }
}
Sends one Return Request message
PUT /bankReturn
Description

Allows a single return request message payload to be sent into the system.

Parameters
Type Name Description Schema

Body

returnRequest
required

Return Request details

Responses
HTTP Code Description Schema

200

Succesfully processed.

400

General Error.

No Content

Consumes
  • application/json

Example HTTP request
Request path
/bankReturn
Request body
{
  "transactionId" : "81cbf33cd88b11ea87d00242ac130003",
  "cdtrNm" : "string",
  "amount" : 0
}
Example HTTP response
Response 200
{
  "outcome" : "ACSP",
  "additionalInfo" : { }
}
Sends one Resolution of Investigation Request message
PUT /bankRoi
Description

Allows a single ROI request message payload to be sent into the system.

Parameters
Type Name Description Schema

Body

roiRequest
required

ROI Request details

Responses
HTTP Code Description Schema

200

Succesfully processed.

400

General Error.

No Content

Consumes
  • application/json

Example HTTP request
Request path
/bankRoi
Request body
{
  "transactionId" : "81cbf33cd88b11ea87d00242ac130003",
  "orgtrNm" : "string",
  "rsnCd" : "string",
  "rsnPrtry" : "string",
  "addtlInf" : [ "string" ]
}
Example HTTP response
Response 200
{
  "outcome" : "ACSP",
  "additionalInfo" : { }
}
Retrieves the ongoing request load simulated on the system
GET /requestLoad
Description

Reads the current settings for bulk/continuous request load generation.

Responses
HTTP Code Description Schema

200

The requests per second

400

Usually the result of a malformed RequestLoadConfiguration json payload.

No Content

Example HTTP request
Request path
/requestLoad
Example HTTP response
Response 200
{
  "requestsPerSecond" : 15,
  "requestsLeft" : 350,
  "cutOffTime" : "2020-10-23T17:30:00.000+0000"
}
Sets the ongoing request load simulated on the system under test
POST /requestLoad
Description

Generates financial transactions at the given rate, continuously or in a limited batch. Size and/or duration can be used for batch mode, omit for continous mode. Set rate to zero to stop.

Parameters
Type Name Description Schema

Body

body
required

The desired request load settings

Responses
HTTP Code Description Schema

200

The updated requests per second

400

General Error.

No Content

Example HTTP request
Request path
/requestLoad
Request body
{
  "requestsPerSecond" : 15,
  "size" : 500,
  "duration" : "PT5M"
}
Example HTTP response
Response 200
{
  "requestsPerSecond" : 15,
  "requestsLeft" : 350,
  "cutOffTime" : "2020-10-23T17:30:00.000+0000"
}

Configuration

Configure the simulator

Read all responder configurations
GET /responseConfiguration
Description

Provides response configurations for all responders. Useful to have the complete list of available handlers.

Responses
HTTP Code Description Schema

200

The list of simulator response configurations

Example HTTP request
Request path
/responseConfiguration
Example HTTP response
Response 200
{
  "three-items" : [ {
    "handlerId" : "accounts",
    "latency" : 100
  }, {
    "handlerId" : "fraud",
    "latency" : 150
  }, {
    "handlerId" : "sanctions",
    "latency" : 0
  } ]
}
See how a specific responder responds to requests
GET /responseConfiguration/{handlerId}
Description

Provides details of the Reject / Hit rate, the rate of messages not to respond to and so cause to timeout and the latency to apply before responding.

Parameters
Type Name Description Schema

Path

handlerId
required

The identifier of the request handler to get the configuration for. This is defined by the implementation.

string

Responses
HTTP Code Description Schema

200

The responder response configuration.

404

The request handler could not be found with the provided handlerId.

No Content

Example HTTP request
Request path
/responseConfiguration/string
Example HTTP response
Response 200
{
  "handlerId" : "channel",
  "latency" : 100
}
Change how a responder responds to requests
PUT /responseConfiguration/{handlerId}
Description

Sets details of the Reject / Hit rate, the rate of messages not to respond to and so cause to timeout and the latency to apply before responding.

Parameters
Type Name Description Schema

Path

handlerId
required

The identifier of the request handler to configure. This is defined by the implementation.

string

Body

newConfiguration
required

The new configuration to use including the ID of the handler.

Responses
HTTP Code Description Schema

200

The simulator response configuration was recieved successfully.

No Content

400

Usually the result of a malformed ResponseConfiguration json payload.

No Content

404

The request handler could not be found with the provided handlerId.

No Content

Example HTTP request
Request path
/responseConfiguration/string
Request body
{
  "handlerId" : "channel",
  "latency" : 100
}

Statistics

Query the status of the simulator

GET /statistics
Responses
HTTP Code Description Schema

200

Provides statistical information about transaction processing and their outcomes.

Example HTTP request
Request path
/statistics
Example HTTP response
Response 200
{
  "pending" : 3,
  "totalSent" : 6433,
  "successful" : 6421,
  "totalReceived" : 0,
  "timedOut" : 5,
  "failed" : 12,
  "recentLatency" : 155,
  "statusCounters" : [ {
    "status" : "Accepted",
    "count" : 6410
  }, {
    "status" : "Rejected",
    "count" : 11
  } ]
}

SentTransactionSummary

Query the transactions for the simulator

GET /transactions
Responses
HTTP Code Description Schema

200

Provides detailed transaction information.

Example HTTP request
Request path
/transactions
Example HTTP response
Response 200
{
  "totalSent" : 1000,
  "averageTransactionTimeMs" : 64,
  "startEventTime" : "2020-10-23T16:30:50.000+0000",
  "lastEventTime" : "2020-10-23T17:30:50.000+0000",
  "transactions" : [ {
    "id" : "TestFlow|nQqyDbhqWrwJysoDVJrRVPTOfPhicTKgkDE",
    "status" : "Completed",
    "startTime" : "020-10-23T17:30:00Z",
    "completedTime" : "2020-10-23T17:30:05.000+0000",
    "timeTakeMs" : 5000
  }, {
    "id" : "TestFlow|nQqyDbhqWrwJysoDVJrRVPTOfPhicTKgkAD",
    "startTime" : "020-10-23T17:30:00Z",
    "status" : "Processing"
  } ]
}

Definitions

Account

A representation of an account

Name Description Schema

iban
optional

An IBAN identifying the account
Example : "GB29NWBK60161331926819"

string

bic
optional

A BIC identifying the account
Example : "DEUTDEFF"

string

accountId
optional

A generic identifier for the account
Example : "7928629"

string

ukBankAccount
optional

A representation of a UK bank account
Example : "object"

proxy
optional

A representation of proxy account identification
Example : "object"

ukBankAccount

Name Description Schema

sortcode
required

Branch identifier
Example : "21-21-21"

string

accountNumber
required

Account identifier
Example : "12345678"

string

proxy

Name Description Schema

type
optional

An indication of the type of this proxy id
Example : "PAYPAL_ID, EMAIL, PHONE - or any string that the CSM might identify as a proxy identifier type"

string

id
optional

Proxy id
Example : "some.email.address@iconsolutions.com - or any string that conforms to the CSMs proxy id expectations"

string

CurrencyCode

The ISO 4217 currency code

Type : enum (GBP, USD, EUR, CHF, CAD, AUD, NZD, HKD, JPY, CNY)

FinancialAmount

A representation of a financial amount with the currency involved

Name Description Schema

amount
optional

The amount of money in the lowest denomination not needing fractions e.g. pennies for GBP and cents for USD
Example : 100

integer (int64)

currency
optional

Example : CurrencyCode

MagicValue

Magic Value for the simulator used to produce the response.

Name Description Schema

description
optional

Decribe the magic value what the impact
Example : "it rejects the payment for this given value"

string

path
optional

The path in the request to get the value.
Example : "request.CreditAccountIdentifier"

string

value
optional

The value in the request that will be considered magic value.
Example : "PT2222666699988888"

string

MagicValues

A list of all the magic values in the simulator.

Type : < MagicValue > array

RecallRequestInitiator

Recall Request payload

Name Description Schema

transactionId
optional

A unique identifier for the generated financial transaction
Example : "81cbf33cd88b11ea87d00242ac130003"

string

cancellationId
optional

A randomly generated value used for test purposes and to match the alternative ids
Example : "string"

string

cdtrNm
optional

Creditor name
Example : "string"

string

RequestDetails

A description of a request to send to the system under test.

Name Description Schema

transactionId
optional

A unique identifier for the generated financial transaction
Example : "fb495cf0d88a11ea87d00242ac130003"

string

amount
optional

Amount being transferred
Example : FinancialAmount

originatorName
optional

Name of the person sending funds
Example : "John Maynard Keynes"

string

originatorAccount
optional

Debtor account
Example : Account

beneficiaryName
optional

Name of the person receiving funds
Example : "Benedetto Cotrugli"

string

beneficiaryAccount
optional

Creditor account
Example : Account

remittanceInfo
optional

Remittance information
Example : "Remittance information"

string

additionalInfo
optional

Reserved for extended features of individual simulators
Example : { }

object

RequestLoadConfiguration

A request to generate financial transactions at the given rate, continuously or in a limited batch. Size and/or duration can be used for batch mode, omit for continous mode. Set rate to zero to stop.

Name Description Schema

requestsPerSecond
required

The number of request messages to send each second. Use 0 to turn load traffic off.
Minimum value : 0
Example : 15

integer

size
optional

The maximum number of requests to produce. Unlimited if not set, must be positive otherwise.
Minimum value : 1
Example : 500

integer (int64)

duration
optional

The maximum amount of time to produce requests for. ISO-8601 duration format PnDTnHnMn.nS with days considered to be exactly 24 hours. Unlimited if not set, must be positive otherwise.
Example : "PT5M"

string (iso8601)

RequestLoadResponse

A request to generate financial transactions at the given rate, continuously or in a limited batch. Size and/or duration can be used for batch mode, omit for continous mode. Set rate to zero to stop.

Name Description Schema

requestsPerSecond
required

The current rate of request messages to send per second. Zero means no traffic is being generated.
Minimum value : 0
Example : 15

integer

requestsLeft
optional

The number of requests to produce before stopping. Not set for unlimited requests.
Minimum value : 1
Example : 350

integer (int64)

cutOffTime
optional

The instant when the simulator will stop producing requests. Not set for unlimited time.
Example : "2020-10-23T17:30:00.000+0000"

string (date-time)

RequestOutcome

Whether this request was accepted or rejected

Name Description Schema

outcome
required

ACSP for accepted, RJCT for rejected
Example : "ACSP"

enum (ACSP, RJCT)

additionalInfo
optional

implementation-specific extra information
Example : { }

object

ResolutionOfInvestigationRequestInitiator

Resolution of Investigation Request payload

Name Description Schema

transactionId
optional

A unique identifier for the generated financial transaction
Example : "81cbf33cd88b11ea87d00242ac130003"

string

orgtrNm
optional

Orgtr name
Example : "string"

string

rsnCd
optional

reason code
Example : "string"

string

rsnPrtry
optional

reason prtry
Example : "string"

string

addtlInf
optional

Example : [ "string" ]

< string > array

ResponseConfiguration

Configuration of how the simulator handles responses.

Name Description Schema

handlerId
optional

The identifier of the handler
Example : "channel"

string

latency
optional

How long to wait before responding. Defined in milliseconds.
Example : 100

integer

ResponseConfigurations

A list of all the response configurations in the simulator.

Type : < ResponseConfiguration > array

ReturnRequestInitiator

Return Request payload

Name Description Schema

transactionId
optional

A unique identifier for the generated financial transaction
Example : "81cbf33cd88b11ea87d00242ac130003"

string

cdtrNm
optional

Creditor name
Example : "string"

string

amount
optional

Original bank settlement amount
Example : 0

integer (int64)

SentTransactionDetails

Details of all the sent transactions

Name Description Schema

id
optional

Example : "TestFlow|nQqyDbhqWrwJysoDVJrRVPTOfPhicTKgkAD"

string

status
optional

Example : "Accepted"

string

startTime
optional

The instant when the simulator issued the request.
Example : "2020-10-23T17:30:00.000+0000"

string (date-time)

completedTime
optional

The instant when the simulator received the completed response.
Example : "2020-10-23T17:30:50.000+0000"

string (date-time)

timeTakeMs
optional

time taken for transactions to complete (completedTime - startTime).
Example : 64333

integer

SentTransactionSummary

Details about transactions

Name Description Schema

totalSent
optional

Total number of transactions received via outbound payments.
Example : 1000

integer

averageTransactionTimeMs
optional

Average time taken for transactions to complete.
Example : 64

integer

startEventTime
optional

The instant when the simulator sent its first request.
Example : "2020-10-23T16:30:50.000+0000"

string (date-time)

lastEventTime
optional

The instant when the simulator received its last response.
Example : "2020-10-23T17:30:50.000+0000"

string (date-time)

transactions
optional

Implementation-specific counters, incremented by inspecting the message and deriving a status
Example : [ { "id" : "TestFlow|nQqyDbhqWrwJysoDVJrRVPTOfPhicTKgkDE", "status" : "Completed", "startTime" : "020-10-23T17:30:00Z", "completedTime" : "2020-10-23T17:30:05.000+0000", "timeTakeMs" : 5000 }, { "id" : "TestFlow|nQqyDbhqWrwJysoDVJrRVPTOfPhicTKgkAD", "startTime" : "020-10-23T17:30:00Z", "status" : "Processing" } ]

Statistics

Statistical information about transaction processing and their outcomes.

Name Description Schema

pending
optional

Total number of transactions started but with no determined outcome.
Example : 3

integer

totalSent
optional

Total number of transactions received via outbound payments.
Example : 6433

integer

successful
optional

Total number of transactions received via outbound payments excluding the ones that failed for non business related reasons.
Example : 6421

integer

totalReceived
optional

Total number of transactions received via inbound payments.
Example : 0

integer

timedOut
optional

Total number of transactions for which no timely response was received.
Example : 5

integer

failed
optional

Total number of transactions that failed.
Example : 12

integer

recentLatency
optional

Recent average latency seen for responses to arrive for requests in ms.
Example : 155

integer

statusCounters
optional

Implementation-specific counters, incremented by inspecting the message and deriving a status
Example : [ { "status" : "Accepted", "count" : 6410 }, { "status" : "Rejected", "count" : 11 } ]

< StatusCounter > array

StatusCounter

Additional counters for use in statistics. These are defined by the implementation.

Name Description Schema

status
optional

Example : "Accepted"

string

count
optional

Example : 42

integer

Exploring the Simulator API

The simulator api can be explored and triggered using swagger-ui. It is served by the simulator under the path /apidocs.

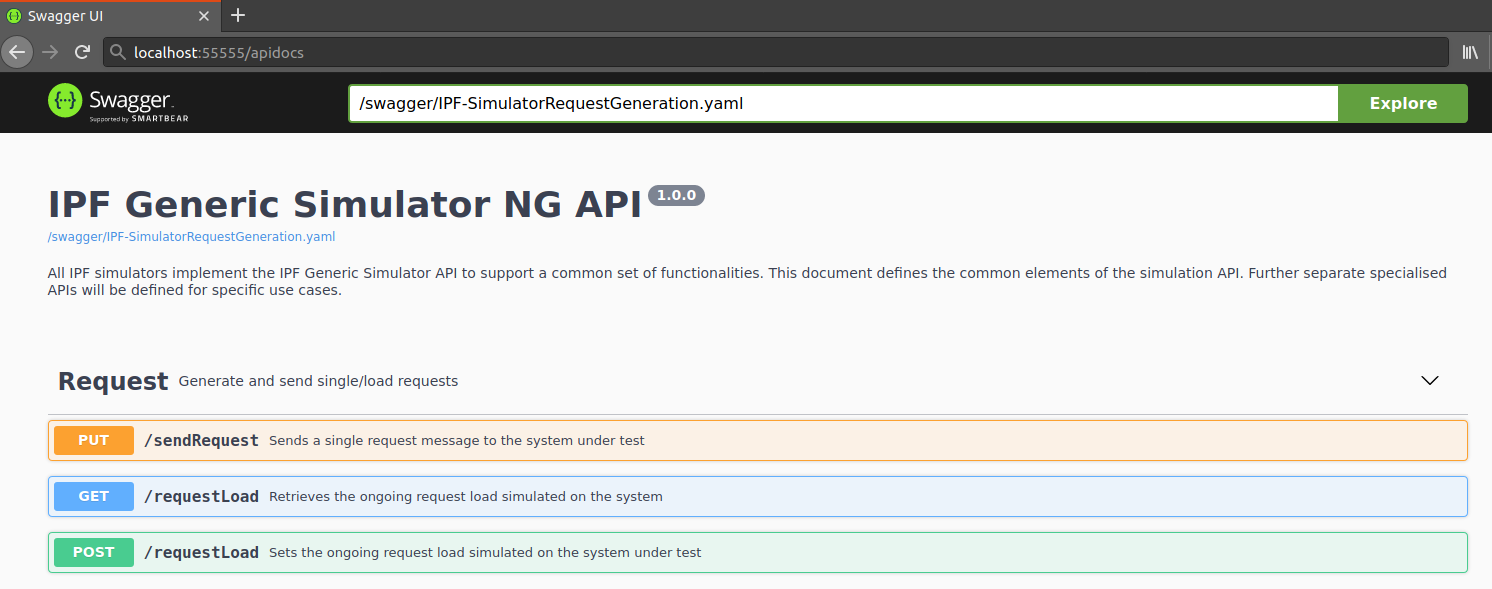

swagger ui

You can trigger the simulator using the swagger ui Try it out buttons.

Implementing a Simulator

As outlined previously we can implement three types of simulators: . Bank simulators . CSM simulators . Responder simulators (i.e. request handlers)

The simulator framework comes as a Spring Boot starter, with an API module.

To implement a simulator, you will need to:

Project dependencies

Use the following maven configuration:

<dependencies>
    <dependency>
       <groupId>com.iconsolutions.test</groupId>
        <artifactId>ipf-simulator-ng-api</artifactId>
        <version>${simulator.version}</version>
    </dependency>
    <dependency>
       <groupId>com.iconsolutions.test</groupId>
        <artifactId>ipf-simulator-ng-core</artifactId>
        <version>${simulator.version}</version>
    </dependency>
</dependencies>

Simulator Application

A Simulator application is just a Spring Boot application that will auto-configure the simulator framework thanks to the dependency declared before.

@SpringBootApplication
class ExampleSimulatorApplication {
    public static void main(final String[] args) {
        final var simulator = new SpringApplication(ExampleSimulatorApplication.class);
        simulator.setWebApplicationType(NONE);
        simulator.run(args);
    }
}

Message definitions

The payment request initiator will generate a request message, enrich it with the payload of the initiation command and finally send it to the target system using the appropriate transport. For this to happen, the simulator needs to know how to generate a template one, how to apply the initiate command to it and where to send it.

Such characteristics are defined using the MessageDefinition feature from the Icon Test Framework.

    @SuppressWarnings("unused")
    enum TestBusinessDomainMessageType implements MessageType {

        MY_REQUEST,
        PAIN001_RAW_REQUEST,

        PACS008_RAW_REQUEST;

        public String getName() {
            return name();
        }

        public Set<String> getAliases() {
            return Set.of();
        }
    }

    @Bean
    MessageDefinition<MyRequest> requestMessageDefinition(final WireMockServer wireMockServer) {
        return new DefaultMessageDefinition.Builder<MyRequest>()
                .withType(MY_REQUEST)  (1)
                .withGenerator(myRequestGenerator()) (2)
                .withDocumentTypeClass(MyRequest.class) (3)
                .withDestination(wireMockServer.url("/endpoint")) (4)
                .withToStringMapper(this::messageAsJson)
                .build();
    }

    private String messageAsJson(Object document) {
        try {
            return objectMapper.writeValueAsString(document);
        } catch (JsonProcessingException e) {
            throw new IconRuntimeException("Could not serialize " + document, e);
        }
    }

    @Bean
    RequestInitiationGenerator<MyRequest> myRequestGenerator() {
        return properties -> new MyRequest();
    }
1 Symbolic type
2 Generate a request, maybe populate with random values
3 Java type of the request
4 Transport-specific representation of the destination
Some transports might not require a destination to be specified on the message definition

To apply the payment initiation command to the generated request, we also need to define an enricher:

    @Bean
    RequestInitiationEnricher<MyRequest> myRequestEnricher() {
        return (myRequest, parameters) -> {
            Optional.ofNullable(parameters.getTransactionId())
                    .ifPresent(myRequest::setTxnId);

            Optional.ofNullable(parameters.getAmount())
                    .map(RequestAmount::getAmount)
                    .ifPresent(myRequest::setAmount);

            return myRequest;
        };
    }

The enriched request will now be shipped to the destination configured above, with the transport matching MY_REQUEST as a symbolic message type.

Raw Request Wrapper

Raw request wrapper is used for cases when we want simulator simply to pass the message to the destination rather than generating and enriching the message. For sending raw message /sendRawRequest API is used where the raw request (full message) needs to be provided. An optional Metadata header can be used for cases where this API is used to support sending different raw messages to different destinations.

Like for sending a single request with enricher, we need to define a message definition and most importantly raw request wrapper. For this we will start from implementing raw request wrapper by implementing com.iconsolutions.simulator.core.service.RawRequestWrapper interface.

    @Bean
    RawRequestWrapper<MyRawPain001Request> rawPain001RequestWrapper() {
        return new RawRequestWrapper<MyRawPain001Request>() {
            @Override
            public MyRawPain001Request map(InitiateWithRawRequest initiateWithRawRequest) { (1)
                return MyRawPain001Request.builder()
                        .rawXml(initiateWithRawRequest.getRawRequest())
                        .build();
            }

            @Override
            public boolean supports(InitiateWithRawRequest initiateWithRawRequest) { (2)
                return "this is pain001 message".equalsIgnoreCase(initiateWithRawRequest.getMetadata());
            }
        };
    }

In that example:

1 We are transforming InitiateWithRawRequest that holds rawRequest and header metadata into our custom Java type. This is simply because we would like to create a separate message definition for this particular raw reqeust.
2 It checks against metadata header to see if this wrapper can handle this message. This metadata is important in cases where we would like to handle different raw requests.

After wrapping raw request to our custom Java type we need to define message definition for that type.

An example of defining message definition is:

    @Bean
    MessageDefinition<MyRawPain001Request> rawPain001RequestMessageDefinition(final WireMockServer wireMockServer) {
        return new DefaultMessageDefinition.Builder<MyRawPain001Request>()
                .withType(PAIN001_RAW_REQUEST)  (1)
                .withDocumentTypeClass(MyRawPain001Request.class) (2)
                .withDestination(wireMockServer.url("/pain001")) (3)
                .withToStringMapper(MyRawPain001Request::getRawXml) (4)
                .build();
    }
1 Symbolic type
2 Our custom Java type just so we can define different destination and/or differently to handle this particular raw request
3 Destination where the message should be sent. This can also be handled only by associated message transport.
4 As this represents raw request we could use string mapper like this and use it later in message transport as is.

Message transport

To get the message to its destination, we need to define a MessageTransport.

This defines a relationship between a symbolic message type and the means to route it to destination, called a Transporter.

In this example we are configuring an Akka-based HTTP transporter.

    @Bean
    MessageTransport channelMessageTransport() {
        final ActorSystem actorSystem = ActorSystem.create("test-implementation");
        /* This transporter is asynchronous and does not add messages to the message bucket,
         * therefore it is not suitable for use with JBehave feature tests */
        final var transporter = new AkkaHttpMessageTransporter<>(
                Http.get(actorSystem),
                actorSystem
        );

        return MessageTransportImpl.MessageTransportImplBuilder.aMessageTransportImpl()
                .withSendingSupplier(transporter)
                .withSupportedMessageTypes(Set.of(
                        MY_REQUEST,
                        PAIN001_RAW_REQUEST,
                        PACS008_RAW_REQUEST))
                .build();
    }

Looking at the implementation, we can see how we are leveraging the message definitions:

final class AkkaHttpMessageTransporter<T> implements TransporterWithAckSupport<HttpResponse> {

    @Override
    public CompletionStage<HttpResponse> sendMessageWithAck(MessageDefinition messageDefinition, Message message, String destination) {

        HttpRequest request = httpRequestFor(messageDefinition, message, destination);
        LOGGER.debug("Sending request {}", request);

        return akkaHttp.singleRequest(request)
                // Consume response entity
                .thenCompose(httpResponse -> httpResponse
                        .toStrict(TOSTRICT_TIMEOUT_MILLIS, actorSystem.getDispatcher(), materializer)
                        .thenApply(HttpResponse.class::cast));
    }

    private HttpRequest httpRequestFor(
            MessageDefinition<T> messageDefinition, Message<T> message, String destination) {

        return HttpRequest.create(uriFor(destination, messageDefinition))
                .withMethod(httpMethodFor(messageDefinition))
                .withHeaders(headersFor(message))
                .withEntity(HttpEntities.create(
                        ContentTypes.APPLICATION_JSON,
                        messageDefinition.asString(message.getDocument())
                ));
    }

    private String uriFor(String destination, MessageDefinition<T> messageDefinition) {
        return StringUtils.defaultIfBlank(destination, messageDefinition.getDestination()); (1)
    }
    // ...
}
1 Retrieve the target URL from the relevant message definition

Request handler

Request handlers are there to respond on some requests. For example, when our system sends request to bank’s ACCOUNTS endpoint we want to simulate what bank sends back to our system. Some simulators can only have requests handler as these simulators don’t generate any requests.

Each request handler must implement com.iconsolutions.simulator.api.RequestHandler interface. An example of dummy request handler:

final class ExampleSimulatorHandler implements RequestHandler {

    ExampleSimulatorHandler(final WireMockServer wireMockServer) {
        this.wireMockServer = wireMockServer;
        this.latency = 0;

        this.wireMockServer.stubFor(post(urlEqualTo("/endpoint"))
                .withRequestBody(containing("this-is-a-magic-txnId-and-will-cause-a-rejection"))
                .willReturn(aResponse()
                        .withStatus(418)
                        .withBody("FAILED")));

        this.wireMockServer.stubFor(post(urlEqualTo("/endpoint"))
                .withRequestBody(containing("this-is-a-magic-txnId-and-will-be-accepted"))
                .willReturn(aResponse()
                        .withStatus(201)
                        .withBody("SUCCESS")));
    }

}

It handles all request that comes at WireMock "/endpoint" path. Instead of WireMock a real handler would probably listen on some Kafka topic or JMS queue etc.

Next, you will have to register it with Spring.

@SpringBootApplication
class ExampleSimulatorApplication {

    @Bean
    RequestHandler testSimulatorHandler(final WireMockServer wireMockServer) {
        return new ExampleSimulatorHandler(wireMockServer);
    }

}

After that this dummy request handler will simply return some dummy response if you invoke /endpoint path with expected payload.

Configuration

All externalised configuration follows the Spring Boot conventions.

In short, SpringApplication loads properties from application.properties files in the following locations and adds them to the Spring Environment:

  1. A /config subdirectory of the current directory

  2. The current directory

  3. A classpath /config package

  4. The classpath root

The list is ordered by precedence (properties defined in locations higher in the list override those defined in lower locations).

You can also use YAML ('.yml') files as an alternative to '.properties'.

This is a list of the configuration keys available:

Tabla 1. HTTP server
Key Default Description

simulator.http.host

0.0.0.0

Interface to expose the Simulator API on

simulator.http.port

55555

TCP port to expose the Simulator API on

Magic values

The Request Handler API exposes a method to retrieve a list of Magic Values for the specific simulator implementation.

This functionality is optional, and the default implementation is returning an empty list.

The list of simulator magic values is purely for documentation purposes. They are not supposed to provide any functionality rather than informative.

Looking at the implementation, we can see how we define magic values:

    @Override
    public List<MagicValue> getMagicValues() {
        return List.of(new MagicValue(
                "Rejects requests with this txnId",
                "txnId",
                "this-is-a-magic-txnId-and-will-cause-a-rejection"));
    }

Metrics

Metrics must be enabled explicitly, to do so there are several things you must do

  1. Add a dependency on ipf-simulator-ng-metrics

  2. Configure cinnamon prometheus in your application.conf

  3. Include the cinnamon java agent when running your simulator: -javaagent:/path/to/cinnamon-agent.jar

Metrics dependency

<dependency>
   <groupId>com.iconsolutions.test</groupId>
    <artifactId>ipf-simulator-ng-metrics</artifactId>
    <version>${project.version}</version>
</dependency>

Configure Cinnamon Prometheus

cinnamon.prometheus {
  exporters += http-server
  use-default-registry = on
}

Metrics are exposed in a prometheus friendly format at localhost:9001, unless configured differently in your application.conf.

cinnamon.prometheus {
  ...
  port = 9999
}

There are several metrics provided out of the box, and you can add your own quite easily.

Out of the Box Metrics

Metric Description

application_requests_sent

A count of the requests sent to the target system (may be successful, pending or failed)

application_requests_successful

A count of requests that received a response from from the target system (successfully or not)

application_requests_failed

A count of requests that failed to be sent to the target system (Usually a transport failure)

application_requests_pending

A count of requests that have yet to receive a response from the target system

application_response_durations

A summary of the time taken for the target system to respond to requests

Custom Metrics

Metrics are provided by an instance of com.lightbend.cinnamon.akka.CinnamonMetrics. You can declare a bean dependency on this type and do whatever you like.

An example where we may want to count all the request events (requests and responses in this case)

    @Bean
    RequestEventHandler customMetrics(final CinnamonMetrics cinnamonMetrics) {
        final var customCounter = cinnamonMetrics.createCounter(new Descriptor.Builder()
                .withName("this is a demonstration of a custom metric")
                .withKey("my_custom_counter_metric")
                .build());

        return requestEvent -> customCounter.increment();
    }

All metrics will be prefixed with application_, so the output of this would look like

# HELP application_my_custom_counter_metric this is a demonstration of a custom metric
# TYPE application_my_custom_counter_metric gauge
application_my_custom_counter_metric{application="...ExampleSimulatorApplication",host="...",} 60.0
