CON3 - Writing your own Connector (HTTP)

Getting Started

The tutorial step uses the "add_kafka" solution of the project as it’s starting point.

If at anytime you want to see the solution to this step, this can be found on the "add_http" solution!

In CON2 - Writing your own connector (Kafka), we connected our application with an external sanctions system to make requests. To do this, we created our own Kafka connector and used it for communication to send requests and receive the responses over Kafka . In this tutorial, we’re going to change our protocols and look at using HTTP.

One important difference with the previous example, is that whereas when using Kafka we were using the connector in an asynchronous way, this time we need to use a synchronous HTTP call. This means that we need to use a different style of connector - the "RequestReplyConnector"

You’ll do this by integrating in with a test fraud system. This system:

  • Expects to receive a custom OlafRequest object.

  • Will return a custom OlafResponse object.

Supporting Classes

The first thing we’ll do is import the domain definition for the fraud system. To do this we need to add a dependency into our applications pom.xml:

<dependency>
    <artifactId>fraud-domain</artifactId>
    <groupId>com.iconsolutions.ipf.sample.samplesystems</groupId>
</dependency>

Let’s look at the key classes we receive from this module. The first is the request object we send to the fraud system.

@Data
public class OlafRequest extends SampleEvent<OlafRequestPayload> {
}

If we dig a little further we’ll find that the key element of the payload is the FraudRequest:

@Builder
@Data
@AllArgsConstructor
@NoArgsConstructor
public class FraudRequest {
    ObjectNode fiToFICstmrCdtTrf;
}

Here we can see that it is expecting to be provided with a pacs.008 in an object node format. This is just a jackson representation of the pacs008.

Mapping

In our Kafka example we used a pre-packaged mapper to convert from our pacs.008 to the OlafRequest. Here as an example of the different approaches available we’ll write our own mapper.

So let’s start by creating a mapping class that can take our pacs.008 and create our Fraud request for us. You’ll do this by creating a new "mappers" package and then adding a class for the "FraudMapper".

To create the FraudRequest object we’ll need to use the jackson mapper’s valueToTree method. We can then use this to construct our FraudRequest. Once we have this we wrap it in the OlafRequest object.

The olafRequest object itself expects a header which must contain a technical event id and a functional component (you can see this digging into the SampleEvent class and the Header class from samplesystems.shared.model). See if you can create this mapping method now, and when ready the solution is below:

@AllArgsConstructor
public class FraudMapper {

    private final Config config;
    private final String prefix;
    private final ObjectMapper objectMapper;

    public OlafRequest mapToRequest(FIToFICustomerCreditTransferV08 fiToFICustomerCreditTransfer) {
        FraudRequest fraudRequest = new FraudRequest();
        fraudRequest.setFiToFICstmrCdtTrf(objectMapper.valueToTree(fiToFICustomerCreditTransfer));

        OlafRequest olafRequest = new OlafRequest();
        olafRequest.setHeader(Header.builder()
                .technical(Technical.builder().eventId("EventId").build())
                .functional(Functional.builder().build())
                .build());
        olafRequest.setPayload(new OlafRequestPayload(fraudRequest));
        return olafRequest;
    }
}

Note here that we’re not using any special frameworks to do our mapping as in this case it’s just a simple java mapping that is easiest.

Now let’s think about the response side. Firstly we’ll need a method to map from the body of the HTTP response to a FraudResponse object. For this again we’ll just use the object mapper:

public OlafResponse convertResponse(String messageText) {
    try {
        return objectMapper.readValue(messageText, OlafResponse.class);
    } catch (JsonProcessingException e) {
        throw new IconRuntimeException(e);
    }
}

Let’s add this method to our FraudMapper.

Finally, we’ll also need a method to map the OlafRequest object to a TransportMessage. In this case our transport message needs to include two things:

  • The olaf request itself as a string payload

  • A set of headers containing:

    • An "httpUrl" header containing the endpoint url to target

    • An "httpMethod" header, in this case just a constant "POST"

    • A "Content-Type" header, in this case just a constant "application/json"

For the endpoint URL we’ll retrieve the value from configuration

See if you can add the method to our FraudMapper, and then when ready the solution is below:

public TransportMessage mapToTransport(OlafRequest olafRequest) {
    try {
        Config httpConfig = config.getConfig(prefix + ".http.client");
        String endpointUrl = httpConfig.hasPath("endpoint-url") ? httpConfig.getString("endpoint-url") : null;
        MessageHeaders messageHeaders = new MessageHeaders(CryptoHelper.messageHeaders())
                .putHeader("httpUrl",  endpointUrl)
                .putHeader("httpMethod", "POST")
                .putHeader("Content-Type", "application/json");
        return new TransportMessage(messageHeaders, objectMapper.writeValueAsString(olafRequest));
    } catch (JsonProcessingException e) {
        throw new IconRuntimeException(e);
    }
}

We do need to use spring to provide to us an instance of the FraudMapper that we can use. To do this we’ll create a new bean within the IpfTutorialConfig class as:

@Bean
public FraudMapper fraudMapper(ActorSystem actorSystem, ObjectMapper objectMapper) {
    return new FraudMapper(actorSystem.classicSystem().settings().config(), "fraud", objectMapper);
}

That’s all of our mappings prepared, let’s go ahead and start creating our connector.

The Connector

Now that we have our mapper ready, we’re good to start building our connector.

Firstly, let’s add the dependency for the connector framework’s HTTP implementation.

<dependency>
    <groupId>com.iconsolutions.ipf.core.connector</groupId>
    <artifactId>connector-http</artifactId>
</dependency>

Now let’s write our connector, again you’ll need to make a few decisions first:

  • Types - The definition of a request-reply connector is RequestReplySendConnector<REQ_D, REQ_T, REP_D, REP_T>. In this instance:

  • the REQ_D the domain request type provided by the flow

  • the REQ_T the http request type sent to the HTTP service

  • the REP_D the domain response type sent back to the flow

  • the REP_T the http response type received from the HTTP service

In our connector will take in a FIToFICustomerCreditTransferV08, transform it to an OlafRequest to send to the Fraud system and then return a OlafResponse. When we receive that OlafResponse we’ll leave it in that format (but we could map it to something else if we wanted!).

  • Logging - As with our previous example, we’ll make it as simple as possible and use the logging implementation that has been provided for us.

  • Mapping - Here we’ll use our mapper we discussed above!

Let’s start by thinking at the class level. You’ll create a new class within our connectors package for the FraudConnectorConfiguration.

Your class will need to access the actor system, the fraud mapper and the message logger implementation to support the creation of the request reply connector.

@Slf4j
@Configuration
@AllArgsConstructor
public class FraudConnectorConfiguration {

    private final ClassicActorSystemProvider actorSystem;
    private final MessageLogger messageLogger;
    private final FraudMapper fraudMapper;

    @Bean
    public RequestReplySendConnector<FIToFICustomerCreditTransferV08, OlafRequest, OlafResponse, OlafResponse> fraudSendConnector() {

        return new RequestReplySendConnector.Builder<FIToFICustomerCreditTransferV08, OlafRequest, OlafResponse, OlafResponse>(
                "Fraud", "fraud.connector", actorSystem)
                .withMessageLogger(messageLogger)
                .withDomainToTargetTypeConverter(fraudMapper::mapToRequest)
                .withSendTransportMessageConverter(fraudMapper::mapToTransport)
                .withConnectorTransport(fraudHttpConnectorTransport)
                .withReceiveTransportMessageConverter(message -> fraudMapper.convertResponse(message.getPayload().toString()))
                .build();
    }

    @Bean
    @SneakyThrows
    public HttpConnectorTransport fraudHttpConnectorTransport() {
        return new HttpConnectorTransport.Builder("OlafRequestReplyHttpConnectorTransport", actorSystem, "fraud")
                .build();
    }

}

This is important enough to walk through each part in turn.

  • The builder construction - this takes a simple string to name the connector, the configuration prefix for the connector

  • the actor system - An Actor System in Akka provides a runtime environment for managing and executing actors, coordinating message-passing, and handling concurrency. Although helpful to know, you’re not required to understand the actor system to develop with IPF effectively.

  • the transport - we construct this here, providing a simple name, the actor system, and the configuration prefix

  • the message logger - as discussed we’ll just use standard logging approaches here for now.

  • the domain to target type converter - here we’ll use our mapToRequest method we built on the FraudMapper, to map FIToFICustomerCreditTransfer to an OlafRequest.

  • the transport message converter - here we’ll use our mapToTransport method we built on the FraudMapper, to map the OlafRequest to a TransportMessage.

  • the receive transport type converter - here we’ll just supply a function that converts the message payload to a string and then uses our fraud mapper service to change into our OlafResponse.

That’s it, that’s our very first request/reply send connector built from scratch.

You may wonder where the correlation controls are. In the request reply world, because everything is synchronous, the correlation features are a complexity we don’t have to worry about as everything is handled within the same thread!

That’s our connector defined.

Using the connector

Now let’s look back at our FraudSystemActionAdapter. To make things simple in our current use case, you’ll simply adapt the existing success case (else) to send to the FraudSystem using the newly built HTTP connector, sending your pacs.008 to the fraud service. You’ll assume for brevity that any response is successful.

See if you can update the adapter now, and when ready the solution is below (the other else if conditions remain as before).

@Slf4j
public class FraudSystemActionAdapter implements FraudSystemActionPort {

    private RequestReplySendConnector<FIToFICustomerCreditTransferV08, OlafRequest, OlafResponse, OlafResponse> fraudConnector;

    @Autowired
    public FraudSystemActionAdapter(RequestReplySendConnector<FIToFICustomerCreditTransferV08, OlafRequest, OlafResponse, OlafResponse> fraudConnector) {
        this.fraudConnector = fraudConnector;
    }

    ...

        } else {
            return fraudConnector.send(action.getProcessingContext(),action.getCustomerCreditTransfer())
                    .thenCompose(response -> IpftutorialmodelDomain.fraudSystem().handle(new FraudCheckResponseInput.Builder(action.getId(), AcceptOrRejectCodes.Accepted).build())
                    .thenAccept((Done done) -> log.debug("Sent input of type {} for id {} with result {}", done.getCommandName(), action.getId(), done.getResult().name())));
        }
    }
}

You also need to make a modification to use the RequestReplySendConnector fraudConnector and the changed FraudSystemActionAdapter now that we added the FraudConnector to its constructor.

@Bean
  public IpftutorialmodelDomain init(ActorSystem actorSystem,
                   IsoMappingService mappingService,
                   SendConnector<FIToFICustomerCreditTransferV08, SanctionsRequest> sanctionsConnector,
                   RequestReplySendConnector<FIToFICustomerCreditTransferV08, OlafRequest, OlafResponse, OlafResponse> fraudConnector) {
    ...

                .withFraudSystemActionAdapter(new FraudSystemActionAdapter(fraudConnector))

    ...

That’s all our code done, next up let’s look at configuration.

Configuration

You’ll add our configuration into our application configuration file (ipf-tutorial-app/application.conf).

fraud {
  transport = http
  http {
    client {
      host = "localhost"
      port = "8089"
      endpoint-url = "/v1"
    }
  }
}

This configuration assumes that the fraud simulator will be running on the localhost and port 8089. This is what it will be when running from the command line (see non-docker setup). If we’re running from within docker, we’ll need to update only the host and port.

That’s everything from our application side complete.

Running the application

To run the application, the first thing you’ll need to do is set up the actual fraud service that you will be talking to. For this you need a new entry in the application.yml (docker/application.yml)

Docker Setup

  fraud-sim:
    image: registry.ipf.iconsolutions.com/sample-systems-fraud-simulator-http:2.1.46
    container_name: fraud-sim
    environment:
      - FRAUD_SIM_ENCRYPTION_ENABLED=FALSE
    ports:
      - 8089:8080
      - 8090:55555
    volumes:
      - ./config/fraud:/fraud-simulator-http/conf
      - ./logs:/ipf/logs
    user: "${UID:-1000}:${GID:-1000}"

Note that the "2.1.46" version provided here is the latest version at the time of writing of this document.

To make things easier you’ll also add a logback.xml file:

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
    <appender name="FILE"
              class="ch.qos.logback.core.rolling.RollingFileAppender">
        <file>/ipf/logs/fraud-sim.log</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.FixedWindowRollingPolicy">
            <fileNamePattern>/ipf/logs/fraud-sim.log.%i</fileNamePattern>
            <minIndex>1</minIndex>
            <maxIndex>20</maxIndex>
        </rollingPolicy>
        <triggeringPolicy
                class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
            <maxFileSize>50MB</maxFileSize>
        </triggeringPolicy>
        <encoder>
            <pattern>%date{yyyy-MM-dd} %d{HH:mm:ss.SSS} %-5level %X{traceId} %logger{36} %X{sourceThread} %X{akkaSource} - %msg%n</pattern>
        </encoder>
    </appender>

    <root level="INFO">
        <appender-ref ref="FILE" />
    </root>
</configuration>

You’ll also need to update the application.conf in the docker setup to tell it the hostname of the new fraud simulator. To do this we simply add:

fraud {
  http {
    client {
      host = "fraud-sim"
      port = 8080
    }
  }
}

Non Docker Setup

Details for how to run the the fraud simulator can be found here: Using the fraud simulator

Testing it all works

Now’s the time to check everything works, so let’s rebuild the application:

mvn clean install -rf :ipf-tutorial-app

And then you can send in a payment:

curl -X POST localhost:8080/submit -H 'Content-Type: application/json' -d '{"value": "25"}' | jq

Note here you are sending in a value of 25. That’s to ensure you reach our happy path and call out to the Fraud Simulator.

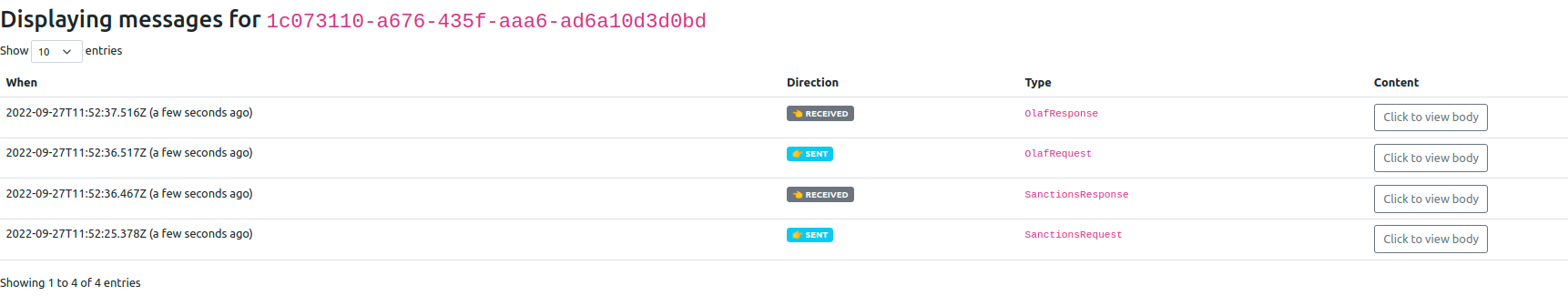

And if you bring up the payment in the Developer GUI and look at the messages of the tutorial flow (search by unit of work ID, click view, click ipf tutorial flow, click messages) then you will see:

write http1

Here you can see that we are now also sending out OlafRequest fraud messages. If you look at the message data (Click to view body), you should see the Request message contains the full fiToFICstmrCdtTrf (pacs.008) and the response has the fraudFeedback payload.

Conclusions

In this section, we’ve established a new HTTP connection to an existing fraud server.
