Supported Flows

The CSM Service currently supports the following flows, the sequence diagrams below illustrates where the CSM service fits in the broader context of mediating between flows and CSMs.

*aCSM - specific instance of a CSM which a particular csm-service is integrating to e.g. RT1/TIPS/SIC

NOTE: Interactions with the CSM are indicated with a dotted line, as they are subject to change depending on the scheme that is being integrated to - the details of which are specified in the scheme specific CSM service documentation.

Credit Transfer Flows

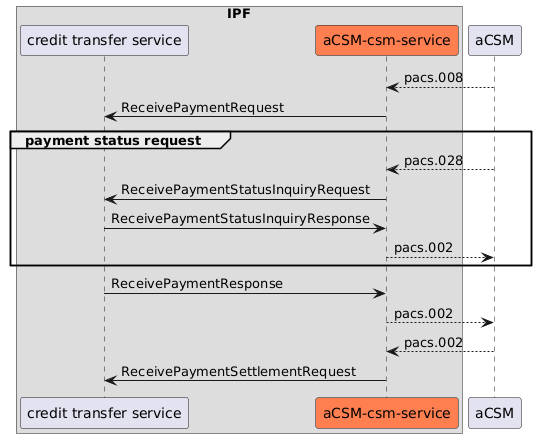

Creditor CT Flow

creditor-payment-flow

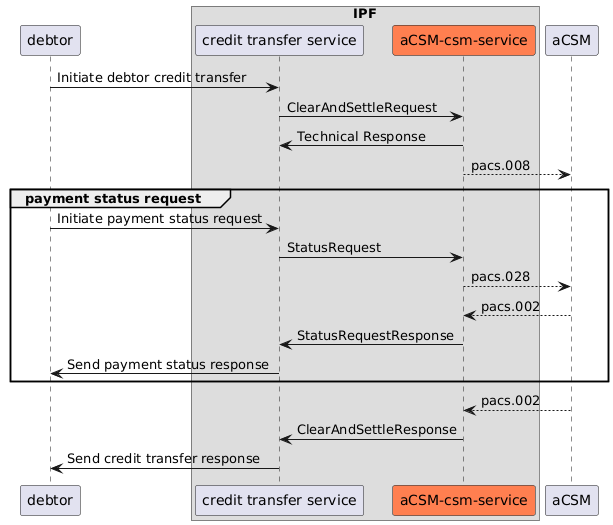

Debtor CT Flow

debtor-payment-flow

Recall, Return, ROI Flows

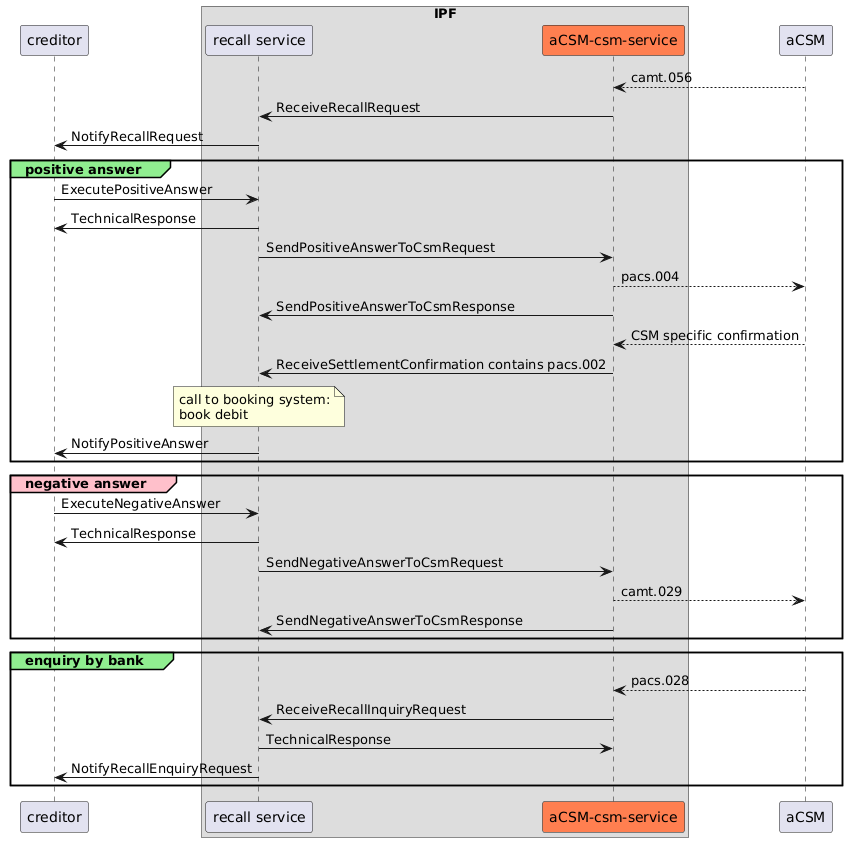

Creditor RRR Flows

rrr-creditor-flow

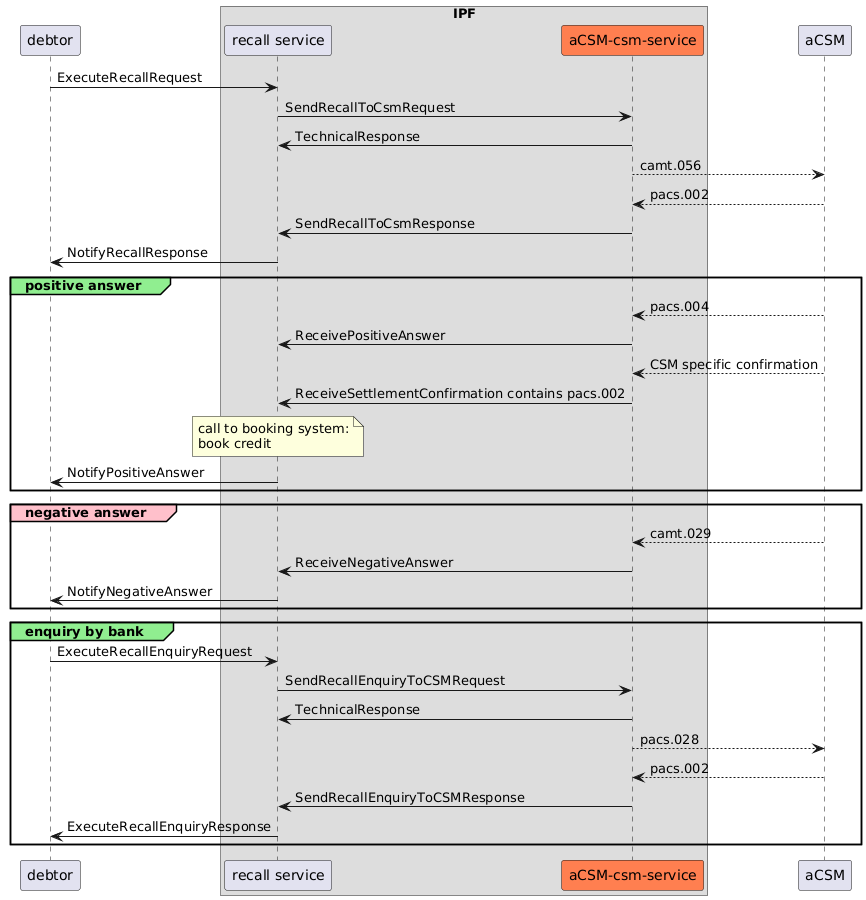

Debtor RRR Flows

rrr-debtor-flow
