Migration Steps for IPF-2023.4.0

Version Updates

DSL Migration

You will need to migrate to the new version of the DSL before being able to use the new release in your application.

To migrate from 2023.3.0, please perform the following steps:

Update your BOM version to the new release version 2023.4.0:

<parent>
    <groupId>com.iconsolutions.ipf</groupId>
    <artifactId>ipf-release-core-bom</artifactId>
    <version>2023.4.0</version>
</parent>

Update all the flo versions within the domain folders to 2.2.23. Namely, in "docs", "domain", "external-libraries", "mps", "sampleapp" and "test" modules, update to look like:

<parent>
    <groupId>com.iconsolutions.ipf.core.flow</groupId>
    <artifactId>flo-starter-<modulename></artifactId>
    <version>2.2.23</version>
    <relativePath></relativePath>
</parent>

If using any of the icon AOM’s (see AOM Details) then you need to add the new aom bom as a dependency:

<dependency>
    <groupId>com.iconsolutions.ipf</groupId>
    <artifactId>ipf-release-aom-bom</artifactId>
    <version>2023.4.0</version>
    <type>pom</type>
    <scope>import</scope>
</dependency>

Run a Maven build to retrieve all the latest dependencies. This maven build is expected to fail because the test model domain will not exist. You should get an error similar to:

package your.package.structure.testfw does not exist

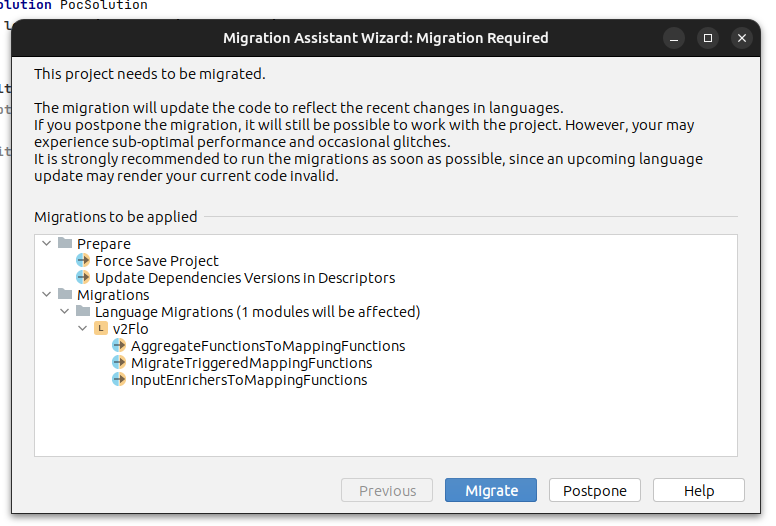

Open your project in MPS and you should be prompted to migrate your solution, click Migrate.

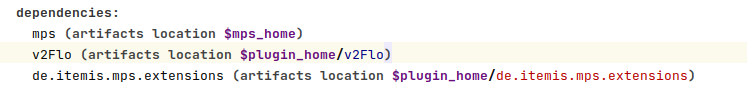

Next if you open your build solution in the YourApplication.build project you should see the de.itemis.mps.extensions entry in red. Simply remove this line.

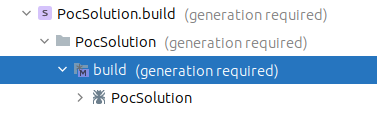

Now in the navigator panel you should see that regeneration of the build script is required:

Right click and select Rebuild Model 'Your Model Name'
Now rebuild using maven and your project should correctly build.

Generated Code Migration

Input Initiation Port

The DSL now makes reference to the model in which the generated input initiation port exists.

Therefore, the migration utility run in the DSL section will have converted the InputInitiationPort to YourModelNameInitiationPort.

Aggregate Functions & Input Enrichers

The enhanced capabilities as described in the overview section for mapping capabilities have led to some changes in the naming of the generated code.

The migration utility run in the DSL section will have converted all aggregate functions and input enrichers to the new style Mapping Functions. The following table defines the expected changes:

Class Description

Old Name

New Name

Aggregate Function’s Port

YourFlowAggregateFunctionPort

YourFlowMappingPort

Aggregate Function Parameters

YourAggregateFunctionNameForFlowYourFlowAggregateFunctionParameters

YourAggregateFunctionNameForFlowYourFlowMappingParameters

Aggregate Function Output

YourAggregateFunctionNameForFlowYourFlowAggregateFunctionOutput

YourAggregateFunctionNameForFlowYourFlowMappingOutput

Input Enricher’s Port

YourFlowInputEnricherPort

YourFlowMappingPort

Input Enricher Parameters

YourInputEnricherNameForFlowYourFlowInputEnricherParameters

YourInputEnricherNameForFlowYourFlowMappingParameters

Input Enricher Output

YourInputEnricherNameForFlowYourFlowInputEnricherOutput

YourInputEnricherNameForFlowYourFlowMappingOutput

In addition, the migration to the new style Mapping Functions will also change the package names in which the above classes now reside. For example:

com.your.project.model_name.flow_name.aggregatefunction.YourAggregateFunctionNameForFlowYourFlowAggregateFunctionOutput;

becomes

com.your.project.model_name.mapping.YourAggregateFunctionNameForFlowYourFlowMappingOutput;

There is no distinction now between an aggregate function and an input enricher from the generated code viewpoint. Therefore, if your flow had both an aggregate function and an input enricher, previously you would have defined a port for both whereas now a single port will be generated containing all your methods.

The YourFlowDomain class will therefore need to be updated. Whereas previous it would have a withXXX method for both aggregate and input enrichment, it will now have a single method for the new mapping port.

Remote Models

An important change is now present when using remote models in MPS, so for example if you define your flows in one model and your external domains in a separate model.

Previously all generated code would be generated from the viewpoint of the flow based model. This meant that the implementation of the external domain logic would have to be performed in the flow implementation.

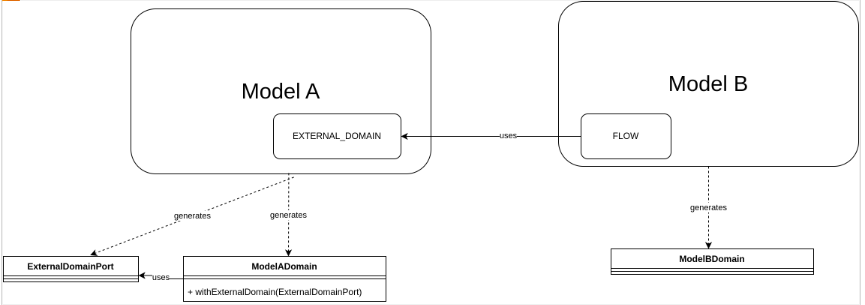

Now however, code is generated according to the model it has been defined in. Imagine you have two models, Model A containing an external domain called 'EXTERNAL_DOMAIN' and Model B containing a flow that uses the external domain.

Here the key thing to understand is that the elements in ModelA are generated within the scope of model A and similarly for ModelB. This means that there will now be the two separate model domain classes and BOTH are needed to be implemented in order for the flow to work.

The major benefit of this change is that we can now package and reuse remote models together with their implementations.
