Migration Steps for IPF-2024.2.0

Migration Steps

MPS

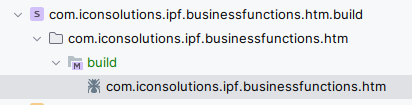

All projects using MPS buildscripts will need to be updated. To do this, open the build script in MPS by clicking on the appropriate file in the navigator:

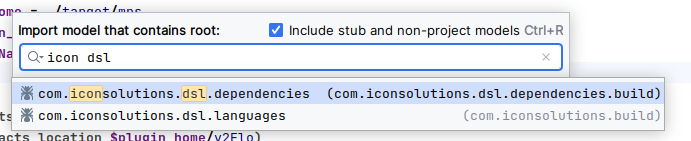

Then press Ctrl+R and ensure the 'include stub and non-project models' selected. Then enter 'icon dsl' in the drop down and select 'com.iconsolutions.dsl.dependencies'

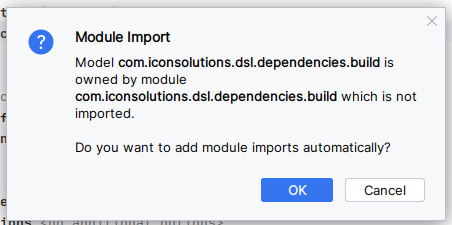

When prompted accept the import of the module.

Repeat the process for 'com.iconsolutions.dsl.languages.

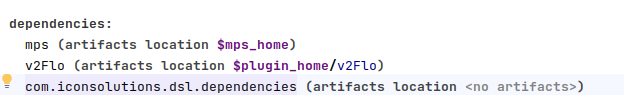

Next in the dependencies section add a new line (press ENTER) and then select from the 'com.iconsolutions.dsl.dependencies' from the type ahead (press Ctrl+Space).

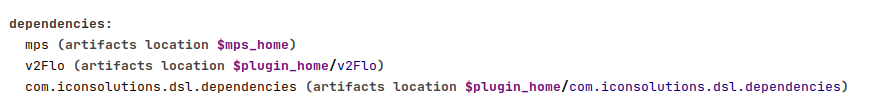

In the location section, use the type ahead (press Ctrl+Space) to select '$plugin_home', then press / and then again select 'com.iconsolutions.dsl.dependencies' from the type ahead.

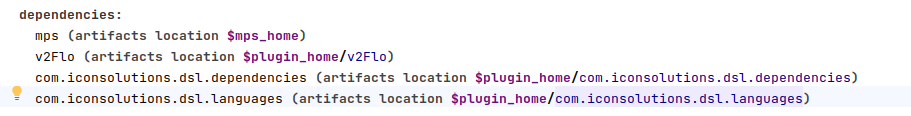

Repeat the process for 'com.iconsolutions.dsl.languages'. Then your dependencies should look like:

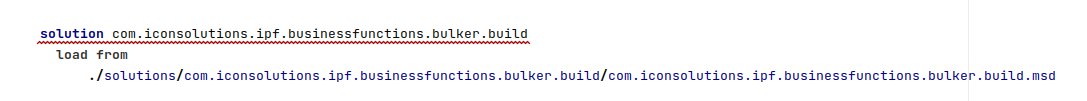

Now, you should now see an error on your solution section for the build:

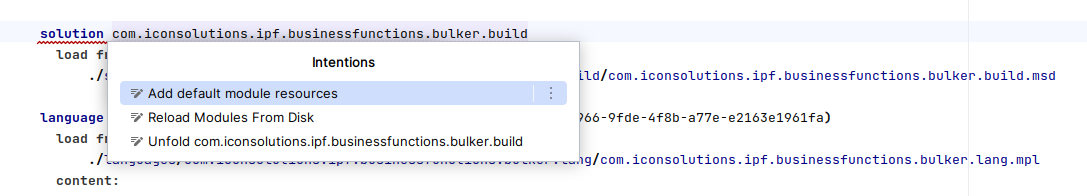

To resolve, click on the underlined text and press Alt+Enter to bring up the intentions popup and select 'Reload Modules From Disk'.

That should resolve the error. Finally, you need to regenerate the build script. To do this, simply right click on the build solution in the navigator and select 'Rebuild Solution'.

You should now be able to build your project through maven as normal.

Update pacs.003 version

The supported pacs.003 message type within the IPF ISO20022 Model has been upgraded from pacs.003.001.07 to pacs.003.001.08.

If your IPF solution includes pacs.003 messages, you will need to make the following type changes:

Version 7 Type

Version 8 Type

com.iconsolutions.iso20022.datatypes.AddressType2Code

com.iconsolutions.iso20022.message.components.technical.address_type3_choice.AddressType3Choice

com.iconsolutions.iso20022.message.components.direct_debit_mandate.amendment_information_details11.AmendmentInformationDetails11

com.iconsolutions.iso20022.message.components.direct_debit_mandate.amendment_information_details13.AmendmentInformationDetails13

com.iconsolutions.iso20022.message.components.organisation.branch_and_financial_institution_identification5.BranchAndFinancialInstitutionIdentification5

com.iconsolutions.iso20022.message.components.organisation.branch_and_financial_institution_identification6.BranchAndFinancialInstitutionIdentification6

com.iconsolutions.iso20022.message.components.organisation_identification.branch_data2.BranchData2

com.iconsolutions.iso20022.message.components.organisation_identification.branch_data3BranchData3

com.iconsolutions.iso20022.message.components.cash_account.cash_account24.CashAccount24

com.iconsolutions.iso20022.message.components.cash_account.cash_account38.CashAccount38

com.iconsolutions.iso20022.message.components.charges.charges2.Charges2

com.iconsolutions.iso20022.message.components.charges.charges7.Charges7

com.iconsolutions.iso20022.message.components.person_identification.contact_details2.ContactDetails2

com.iconsolutions.iso20022.message.components.person_identification.contact4.Contact4

com.iconsolutions.iso20022.message.components.person.date_and_place_of_birth.DateAndPlaceOfBirth

com.iconsolutions.iso20022.message.components.person.date_and_place_of_birth1.DateAndPlaceOfBirth1

com.iconsolutions.iso20022.message.components.date_time_period.date_period_details.DatePeriodDetails

com.iconsolutions.iso20022.message.components.technical.date_period2.DatePeriod2

com.iconsolutions.iso20022.message.components.direct_debit.direct_debit_transaction9.DirectDebitTransaction9

com.iconsolutions.iso20022.message.components.direct_debit.direct_debit_transaction10.DirectDebitTransaction10

com.iconsolutions.iso20022.message.components.direct_debit.direct_debit_transaction_information21.DirectDebitTransactionInformation21

com.iconsolutions.iso20022.message.components.direct_debit.direct_debit_transaction_information24.DirectDebitTransactionInformation24

com.iconsolutions.iso20022.message.components.organisation_identification.financial_institution_identification8.FinancialInstitutionIdentification8

com.iconsolutions.iso20022.message.components.organisation_identification.financial_institution_identification18.FinancialInstitutionIdentification18

com.iconsolutions.iso20022.message.definitions.payments_clearing_and_settlement.pacs003.FIToFICustomerDirectDebitV07

com.iconsolutions.iso20022.message.definitions.payments_clearing_and_settlement.pacs003.FIToFICustomerDirectDebitV08

com.iconsolutions.iso20022.message.components.garnishment.garnishment1.Garnishment1

com.iconsolutions.iso20022.message.components.garnishment.garnishment3.Garnishment3

com.iconsolutions.iso20022.message.components.payment.group_header50.GroupHeader50

com.iconsolutions.iso20022.message.components.payment.group_header94GroupHeader94

com.iconsolutions.iso20022.message.components.direct_debit_mandate.mandate_related_information11.MandateRelatedInformation11

com.iconsolutions.iso20022.message.components.direct_debit_mandate.mandate_related_information14.MandateRelatedInformation14

com.iconsolutions.iso20022.message.components.party_identification_information.name_and_address10.NameAndAddress10

com.iconsolutions.iso20022.message.components.party_identification_information.name_and_address16.NameAndAddress16

com.iconsolutions.iso20022.datatypes.NamePrefix1Code

com.iconsolutions.iso20022.datatypes.NamePrefix2Code

com.iconsolutions.iso20022.message.components.organisation_identification.organisation_identification8.OrganisationIdentification8

com.iconsolutions.iso20022.message.components.organisation_identification.organisation_identification29. OrganisationIdentification29

com.iconsolutions.iso20022.message.components.party_identification_information.party11_choice.Party11Choice

com.iconsolutions.iso20022.message.components.party_identification_information.party38_choice.Party38Choice

com.iconsolutions.iso20022.message.components.party_identification_information.party_identification43.PartyIdentification43

com.iconsolutions.iso20022.message.components.party_identification_information.party_identification135.PartyIdentification135

com.iconsolutions.iso20022.message.components.payment_identification.payment_identification3.PaymentIdentification3

com.iconsolutions.iso20022.message.components.payment_identification.payment_identification7.PaymentIdentification7

com.iconsolutions.iso20022.message.components.payment_processing.payment_type_information25.PaymentTypeInformation25

com.iconsolutions.iso20022.message.components.payment_processing.payment_type_information27.PaymentTypeInformation27

com.iconsolutions.iso20022.message.components.person_identification.person_identification5.PersonIdentification5

com.iconsolutions.iso20022.message.components.person_identification.person_identification13.PersonIdentification13

com.iconsolutions.iso20022.message.components.postal_address.postal_address6.PostalAddress6

com.iconsolutions.iso20022.message.components.postal_address.postal_address24PostalAddress24

com.iconsolutions.iso20022.message.components.document.remittance_information11.RemittanceInformation11

com.iconsolutions.iso20022.message.components.document.remittance_information16.RemittanceInformation16

com.iconsolutions.iso20022.message.components.contact_point.remittance_location4.RemittanceLocation4

com.iconsolutions.iso20022.message.components.contact_point.remittance_location7.RemittanceLocation7

com.iconsolutions.iso20022.message.components.contact_point.remittance_location_details1.RemittanceLocationDetails1

com.iconsolutions.iso20022.message.components.contact_point.remittance_location_data1.RemittanceLocationData1

com.iconsolutions.iso20022.message.components.cash_settlement.settlement_instruction2.SettlementInstruction2

com.iconsolutions.iso20022.message.components.cash_settlement.settlement_instruction8.SettlementInstruction8

com.iconsolutions.iso20022.message.components.document.structured_remittance_information13.StructuredRemittanceInformation13

com.iconsolutions.iso20022.message.components.document.structured_remittance_information16.StructuredRemittanceInformation16

com.iconsolutions.iso20022.message.components.tax.tax_amount1.TaxAmount1

com.iconsolutions.iso20022.message.components.tax.tax_amount2.TaxAmount2

com.iconsolutions.iso20022.message.components.tax.tax_information4.TaxInformation4

com.iconsolutions.iso20022.message.components.tax.tax_information7.TaxInformation7

com.iconsolutions.iso20022.message.components.tax_period.tax_period1.TaxPeriod1

com.iconsolutions.iso20022.message.components.tax_period.tax_period2.TaxPeriod2

com.iconsolutions.iso20022.message.components.tax_record.tax_record1.TaxRecord1

com.iconsolutions.iso20022.message.components.tax_record.tax_record2.TaxRecord2

com.iconsolutions.iso20022.message.components.tax.tax_record_details1.TaxRecordDetails1

com.iconsolutions.iso20022.message.components.tax.tax_record_details2.TaxRecordDetails2

When comparing the pacs.003.001.07 and pacs.008.001.08 XSDs, you will notice that a small number of fields have been added or removed. As a result, you may need to make changes to your code beyond the type changes above. For example, if you previously populated a field that is now removed.

Migrating to `EVENT_STREAM_PER_FLOW` streams

To support deploying new flow versions via rolling upgrades of your orchestration services, all the journal processors defined by the service have to be switched over to use EVENT_STREAM_PER_FLOW as their event-streaming-type.

Before you can perform the configuration switch, however, you will need to scale down your service deployment to zero and run a migration similar to the one specified below.

// all the unique flows in your service, as indicated by the
// `ipf.behaviour.event-processor.flows` configuration property
let flows = [
    "moduleA.FlowAV1",
    "moduleA.FlowAV2",
    "moduleB.FlowBV5",
    "moduleC.FlowBV10"
]

db.getCollection("mongoOffset")
    .find({"_id.tag": /tag-.+/})
    .forEach(doc => {
        flows.forEach(flow => {
            let flowTag = JSON.parse(JSON.stringify(doc));
            flowTag.offset.objectId = doc.offset.objectId;
            flowTag._id.tag = doc._id.tag.replace("tag", flow);

            try {
                db.getCollection("mongoOffset").insertOne(flowTag);
            } catch (e) {
                console.log(e)
            }
        });
    });

It is imperative that you list all the flows present in the current version of your orchestration service. Any flow that is missed will have all of its events reprocessed by the journal processor, which may cause duplicate notifications to be sent to the customers, incorrect metrics to appear on the dashboards or just cause a massive slowdown in processing of new domain events since the processor will be starting from the beginning of the journal.

To get the correct list of active flows, you can run the following curl command against an instance of your orchestration service:

curl your_service_host:port/actuator/info | jq | grep "ipf.behaviour.event-processor.flows"

Alternatively, you can run the following test snippet from within the module that holds your service’s SpringBootApplication — the output will be the migration script that you need to execute against your database.

import com.typesafe.config.ConfigFactory;
import org.junit.jupiter.api.Test;
import java.util.stream.Collectors;

public class MigrationGenerator {

    @Test
    void generateMigration() {
        var flowsAsJsArray = ConfigFactory.parseResources("ipf-impl.conf")
                .withFallback(ConfigFactory.parseResources("ipf.conf"))
                .withFallback(ConfigFactory.defaultReference())
                .resolve()
                .getStringList("ipf.behaviour.event-processor.flows")
                .stream().distinct()
                .map("\"%s\""::formatted)
                .collect(Collectors.joining(",\n ", "let flows = [\n ", "\n]\n"));

        var migrationScriptWithoutFlows = """
                db.getCollection("mongoOffset")
                    .find({"_id.tag": /tag-.+/})
                    .forEach(doc => {
                        flows.forEach(flow => {
                            let flowTag = JSON.parse(JSON.stringify(doc));
                            flowTag.offset.objectId = doc.offset.objectId;
                            flowTag._id.tag = doc._id.tag.replace("tag", flow);
                            try {
                                db.getCollection("mongoOffset").insertOne(flowTag);
                            } catch (e) {
                                console.log(e)
                            }
                        });
                    });
                """;

        System.out.println(flowsAsJsArray);
        System.out.println(migrationScriptWithoutFlows);
    }
}

Migrating to ODS Inquiry API V2

Versions details and the complete V2 ODS Inquiry API migration guide can be found on the ODS API versioning overview page

It is important to note that a config change MUST be applied if you are already using the V1 client connectors and do not want to immediately migrate to the V2 client connectors. Your configuration must be updated to override the client connector version configuration as follows: ods.inquiry.client.version=1
This will ensure your current V1 client connectors remain enabled and a code change will not be required. See V1 Inquiry API client documentation for more information on the V1 client APIs that can be enabled.

Migrating to the latest test framework

There have been minor changes to the package structures in the test framework. 'ipf-test-fw-core' has now moved to 'ipf-test-fw-whitebox'.

The test-fw-extensions-xxx have now been removed from the core package to ensure that unrequired extensions are not always loaded. As a consequence, test implementations that relied on these dependencies will now have to explicitly declare them. These are listed below and are usually required when using one of the provided message transporters:

test-fw-extensions-http
test-fw-extensions-kafka
test-fw-extensions-jms

Jackson serialisation behaviour change

Please note that as a result of updating Jackson to 2.17.x (by updating Spring Boot 3.3.x), Jackson is now no longer serialising objects whose members are all null. For example, in IPF 2024.1 and older an object that looks like this:

{
    "myObject": {
        "someKey": "someValue",
        "someBlankParent": {}
    }
}

Will now be serialised (and deserialised) like this:

{
    "myObject": {
        "someKey": "someValue"
    }
}

(i.e. someBlankParent is now totally absent instead of being an empty shell)

This could present itself as a NullPointerException where null checks were assuming that there was an empty shell as a parent object, when one no longer exists. The solution is to add a null check to the parent object as well.

Please note that no data is being lost since the objects not being serialised were empty to begin with. Any parent object containing at least one value will be serialised along with its data-bearing members.

TransactionCacheEntry collection - change in index names

There was a change in index names that need to be created for transactionCacheEntry mongodb collection (if they are not created and index creation is enabled).

findByTypeAndHashIndex is renamed to hash_1_type_1
findByTypeAndHashAndMessageIdIndex is renamed to hash_1_type_1_messageId_1.

If your mongodb already has those indexes with old names, you will get this error in the log:

TransactionCacheIndexInitialiser.accept - Failed to ensure index on TransactionCacheEntry
org.springframework.data.mongodb.UncategorizedMongoDbException: Command failed with error 85 (IndexOptionsConflict): 'Index already exists with a different name: findByTypeAndHashIndex' on server

If you want to fix this error, rename existing indexes to new names.
