Processing Data Handler
It all starts with the Processing Data Handler, which simply acts as a proxy around the Resequencer actors. This class implements an IPF Processing Data Handler, which allows consuming instances of Data Envelope.
The Notification Service receive connectors feature the following settings:
| Config key | Description | Default value |
|---|---|---|
|
The topic that various services are publishing their IPF processing data events onto. |
|
|
Kafka consumer settings for the response topic consumer, such as:
|
(Kafka defaults) |
Which are overridden in ipf-impl.conf:
ipf.processing-data.ingress.kafka.consumer {
kafka-clients = {
group.id = ipf-notification-service-ingress-consumer-group
auto.offset.reset = earliest
}

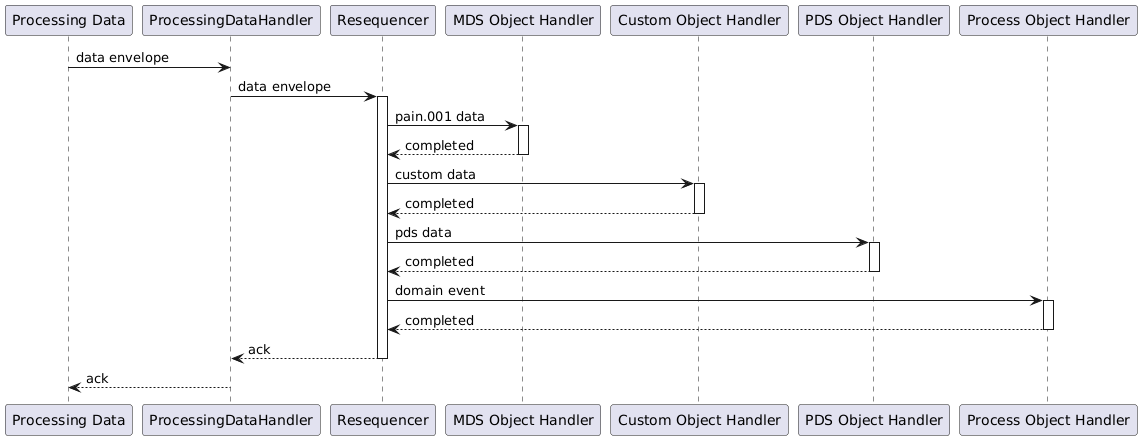

}Its worth understanding what happens when the Data Envelope arrives the Processing Data Handler. The following diagram shows this.
When the Data Envelope arrives the Processing Data Handler, it gets passed to according Resequencer actor for "reordering", and then all Object container objects are extracted from it.
They can be of three types:
-
MDS Object Container: they are handled by MDS Object Handler
-
Custom Object Container: they are handled by Custom Object Handler
-
Process Object Container: they are handled by Process Object Handler
All MDS objects get processed first from passed Data envelope, before Process objects are passed to Process Object Handler.
MDS Object Handler
MDS Object Handler instantiates a payment data cache service. Then, it filters messages from the following object types:
-
PAIN_001
-
PAIN_001_PAYMENT_INSTRUCTION
-
PAIN_001_CREDIT_TRANSFER_TRANSACTION
Then it calls the caching service.
Custom Object Handler
Custom Object Handler instantiates a custom data cache service. Then it calls the caching service.
Pds Object Handler
Pds Object Handler instantiates a pds data cache service. Then it calls the caching service.
Process Object Handler
Process Object Handler instantiates a Payment Status Notification Settings Query and a Notification Sender. Then it filters messages from the following object type:
-
PROCESS_FLOW_EVENT

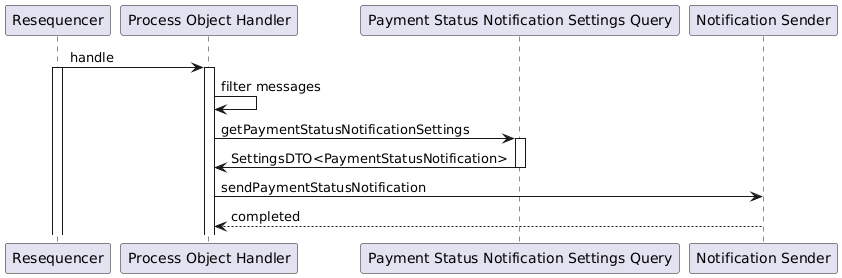

As you can see from the diagram, there are two new concepts that were introduced: Payment Status Notification Settings Query and Notification Sender. They are introduced and explained in detail in those sections.
